Navigation System (for DVD)

NAVIGATION: NAVIGATION SYSTEM (for DVD): B15DF: USB Communication Malfunction
B15DF - USB Communication Malfunction

DESCRIPTION

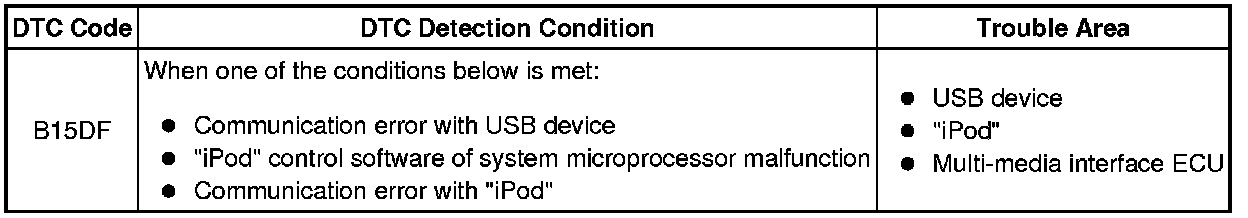

This DTC is stored when a malfunction occurs in communication error with USB device or "iPod".





INSPECTION PROCEDURE

PROCEDURE

1. REPLACE "iPod" OR USB DEVICE

(a) Disconnect the USB device or "iPod" from the stereo jack adapter.

(b) Turn the engine switch off.

HINT
When one of these DTCs has been stored, is necessary to turn off the engine switch to make it possible for the vehicle to recognize a new device when it is connected.

(c) Turn the engine switch on (ACC).

(d) Connect a known good USB device or "iPod" to the stereo jack adapter.

HINT
If the malfunction occurred when a USB device was in use, use another USB device for the inspection. If the malfunction occurred when an "iPod" was in use, use another "iPod" for the inspection.

NEXT -- Continue to next step.

2. CHECK FOR DTC

(a) Clear the DTCs Navigation System (for DVD).

(b) Check for DTCs and check if the same trouble occurs again.

OK:

No DTCs are output.

NG -- REPLACE MULTI-MEDIA INTERFACE ECU Removal

OK -- USB DEVICE OR "iPod" WAS DEFECTIVE
