Navigation System (for HDD)

NAVIGATION: NAVIGATION SYSTEM (for HDD): B15D8: Monitor Disconnected
B15D8 - Monitor Disconnected

DESCRIPTION

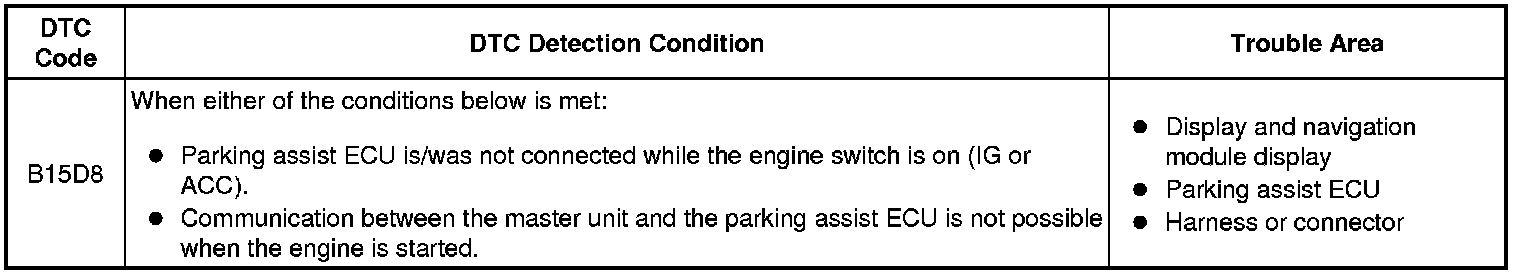

The display and navigation module display and parking assist ECU are connected by the AVC-LAN communication line.

When an AVC-LAN communication error occurs between the display and navigation module display and parking assist ECU, this DTC will be stored.

HINT
* Even if no fault is present, this DTC may be stored depending on the battery condition or engine start voltage.
* The display and navigation module display is the master unit.

WIRING DIAGRAM

INSPECTION PROCEDURE

NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. CHECK OPTIONAL COMPONENTS (INCLUDING ASSOCIATED WIRING)

(a) Check that optional components (including associated wiring) which generate radio waves are not installed.

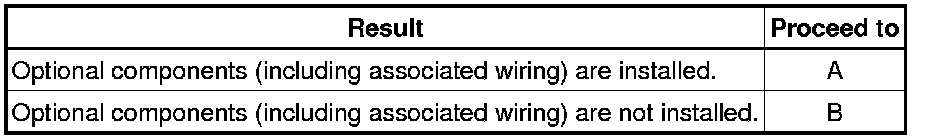

Result

HINT
* Electrical noise from radio waves generated by optional components or the wiring for those components may affect AVC-LAN communication.
* This DTC may be stored when an AVC-LAN communication error occurs due to electrical noise.

B -- CHECK FOR DTC
A -- Continue to next step.

2. REMOVE OPTIONAL COMPONENTS

(a) Remove optional components (including associated wiring).

NOTICE:
Do not remove optional components or associated wiring without the permission of the customer.

NEXT -- Continue to next step.

3. CHECK FOR DTC

(a) Clear the DTCs Navigation System (for HDD).

(b) Check for DTCs and check if the same trouble occurs again.

OK:

No DTCs are output.

NG -- CHECK HARNESS AND CONNECTOR (PARKING ASSIST ECU - BATTERY AND BODY GROUND)

OK -- END

4. CHECK HARNESS AND CONNECTOR (PARKING ASSIST ECU - BATTERY AND BODY GROUND)

(a) Disconnect the L90 parking assist ECU connector.

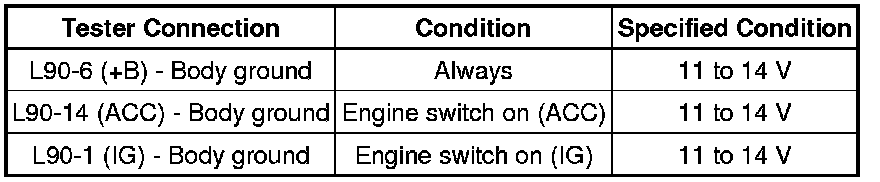

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Text in Illustration

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

5. CHECK HARNESS AND CONNECTOR (PARKING ASSIST ECU - DISPLAY AND NAVIGATION MODULE DISPLAY)

(a) Disconnect the L90 parking assist ECU connector.

(b) Disconnect the L114 display and navigation module display connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

6. REPLACE PARKING ASSIST ECU

(a) Temporarily replace the parking assist ECU with a new or normally functioning one Removal.

(b) Clear the DTCs Navigation System (for HDD).

(c) Check for DTCs and check if the same trouble occurs again.

OK:

No DTCs are output.

NG -- REPLACE DISPLAY AND NAVIGATION
MODULE DISPLAY Removal

OK -- END
