Navigation System (for DVD)

NAVIGATION: NAVIGATION SYSTEM (for DVD): B15A6, B15B0: Display Malfunction

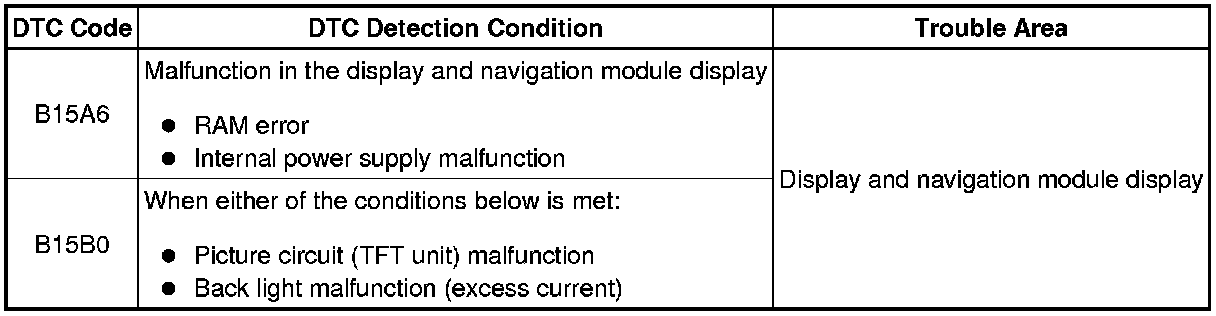

B15A6 - Display Malfunction
B15B0 - Display Screen Malfunction

DESCRIPTION

These DTCs are stored when a malfunction occurs in the display and navigation module display.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTC

(a) Clear the DTCs Navigation System (for DVD).

(b) Check for DTCs and check if same trouble occurs again.

OK:

No DTCs are output.

NG -- REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY Removal

OK -- USE SIMULATION METHOD TO CHECK Electronic Circuit Inspection Procedure
