Electro Multi Vision System, Rear

AUDIO / VISUAL: REAR SEAT ENTERTAINMENT SYSTEM: B15B0: Display Screen Malfunction
B15B0 - Display Screen Malfunction

DESCRIPTION

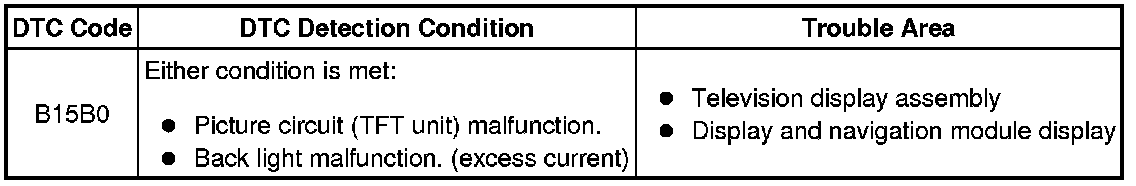

This DTC is stored when a malfunction occurs in the television display assembly.





INSPECTION PROCEDURE

PROCEDURE

1. CLEAR DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

NEXT -- Continue to next step.

2. CHECK FOR DTC

(a) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

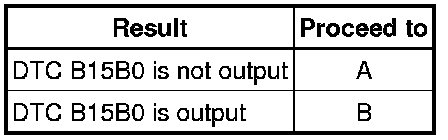

Result





HINT
* This DTC is output from the display and navigation module display or television display assembly.
* When the DTC is checked using the Techstream, whether the DTC is output from the display and navigation module display or television display assembly cannot be distinguished. For this reason, recheck the DTC using the "System Check Mode" screen.

(1) Enter diagnostic mode and display the "Service Menu" screen Reading and Clearing Diagnostic Trouble Codes.

(2) Select "Failure Diagnosis Service Check" on the "Service Menu" screen to display the "Failure Diagnosis Service Check" screen.

(3) Select "Service Check Mode" on the "Failure Diagnosis Service Check" screen and perform the service check.

(4) Check for DTCs and proceed to the next step according to the table below.

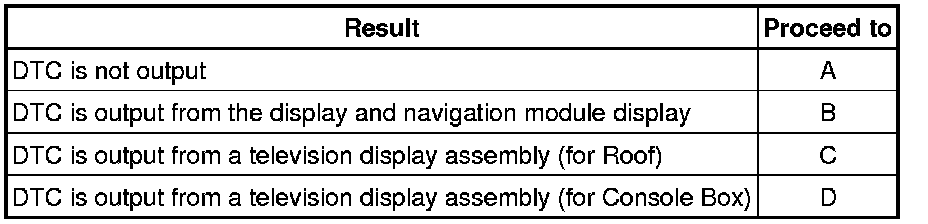

Result





B -- CHECK FOR DTC

C -- REPLACE TELEVISION DISPLAY ASSEMBLY Removal

D -- REPLACE TELEVISION DISPLAY ASSEMBLY Removal

A -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting

3. CHECK FOR DTC

(a) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

Result





HINT
* This DTC is output from the display and navigation module display or television display assembly.
* When the DTC is checked using the Techstream, whether the DTC is output from the display and navigation module display or television display assembly cannot be distinguished. For this reason, recheck the DTC using the "System Check Mode" screen.

(1) Enter diagnostic mode and display the "Service Menu" screen Reading and Clearing Diagnostic Trouble Codes.

(2) Select "Failure Diagnosis Service Check" on the "Service Menu" screen to display the "Failure Diagnosis Service Check" screen.

(3) Select "Service Check Mode" on the "Failure Diagnosis Service Check" screen and perform the service check.

(4) Check for DTCs and proceed to the next step according to the table below.

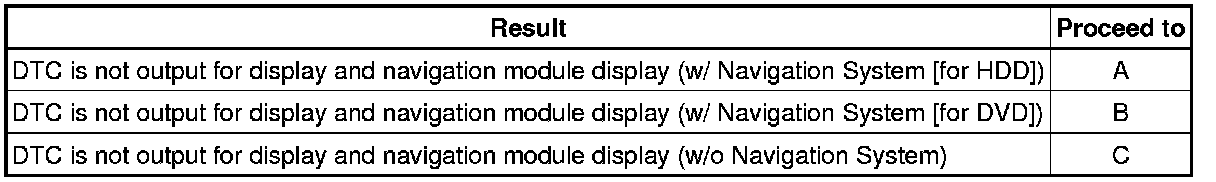

Result





B -- REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY Removal

C -- REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY Removal

A -- REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY Removal
