Navigation System (for HDD)

NAVIGATION: NAVIGATION SYSTEM (for HDD): B15AC: Rear Console Malfunction
B15AC - Rear Console Malfunction

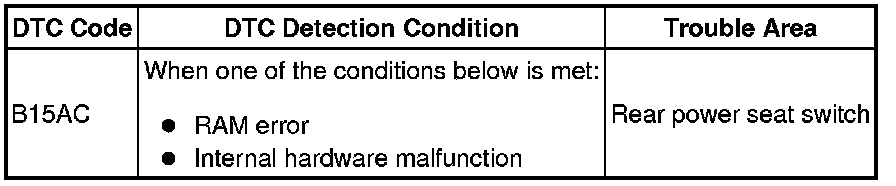

DESCRIPTION

This DTC is stored when a malfunction occurs in the rear power seat switch.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTC

(a) Clear the DTCs Navigation System (for HDD).

(b) Check for DTCs and check if the same trouble occurs again.

OK:

No DTCs are output.

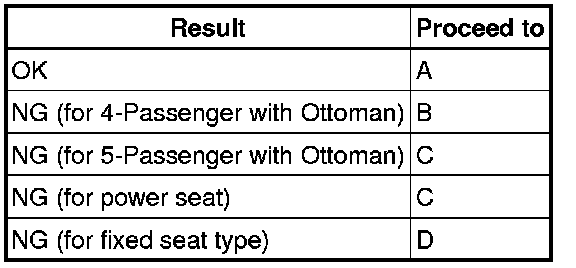

Result





B -- REPLACE REAR POWER SEAT SWITCH Removal

C -- REPLACE REAR POWER SEAT SWITCH Removal

D -- REPLACE REAR POWER SEAT SWITCH Removal

A -- USE SIMULATION METHOD TO CHECK Electronic Circuit Inspection Procedure
