Navigation System (for DVD)

NAVIGATION: NAVIGATION SYSTEM (for DVD): B15AC: Rear Console Malfunction
B15AC - Rear Console Malfunction

DESCRIPTION

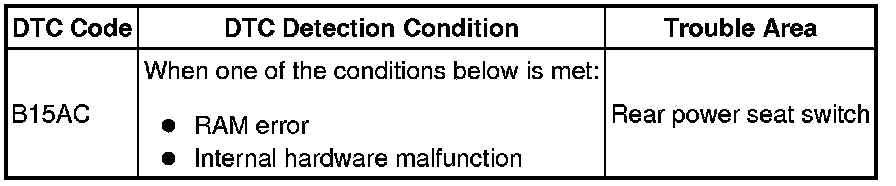

This DTC is stored when a malfunction occurs in the rear power seat switch.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTC

(a) Clear the DTCs Navigation System (for DVD).

(b) Check for DTCs and check if the same trouble occurs again.

OK:

No DTCs are output.

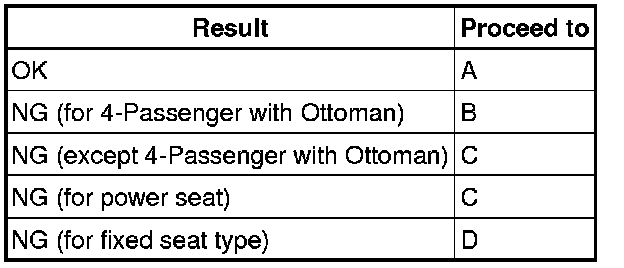

Result





B -- REPLACE REAR POWER SEAT SWITCH Removal

C -- REPLACE REAR POWER SEAT SWITCH Removal

D -- REPLACE REAR POWER SEAT SWITCH Removal

A -- USE SIMULATION METHOD TO CHECK Electronic Circuit Inspection Procedure
