Electro Multi Vision System, Rear

AUDIO / VISUAL: ELECTRO MULTI VISION SYSTEM: B15AC: Rear Console Malfunction
B15AC - Rear Console Malfunction

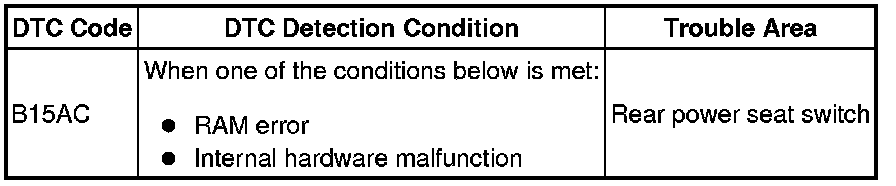

DESCRIPTION

This DTC is stored when a malfunction occurs in the rear power seat switch.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(b) Check for DTCs and check if the same trouble occurs again.

OK:

No DTCs are output.

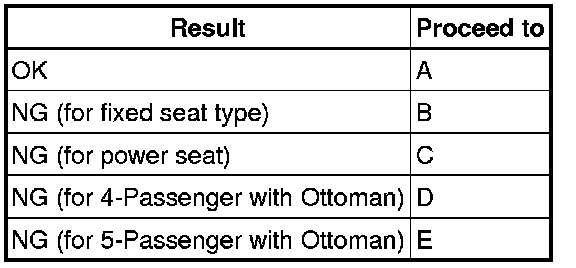

Result





B -- REPLACE REAR POWER SEAT SWITCH Disassembly

C -- REPLACE REAR POWER SEAT SWITCH Disassembly

D -- REPLACE REAR POWER SEAT SWITCH Removal

E -- REPLACE REAR POWER SEAT SWITCH Disassembly

A -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
