Navigation System (for HDD)

NAVIGATION: NAVIGATION SYSTEM (for HDD): B15A5: Rear Seat Entertainment System Malfunction
B15A5 - Rear Seat Entertainment System Malfunction

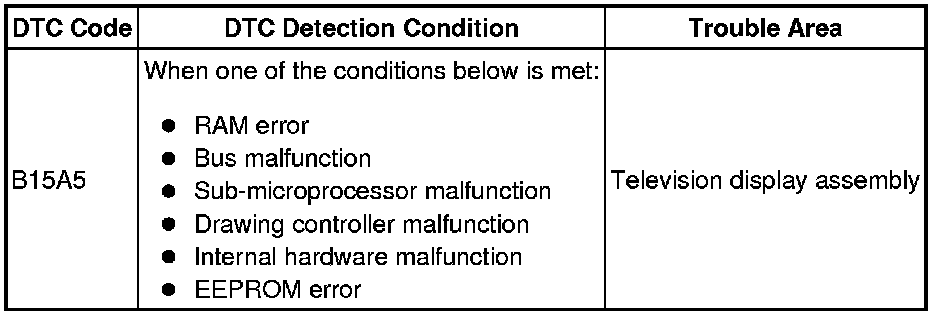

DESCRIPTION

This DTC is stored when a malfunction occurs in the television display assembly.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTC

(a) Clear the DTCs Navigation System (for HDD).

(b) Check for DTCs and check if the same trouble occurs again.

OK:

No DTCs are output.

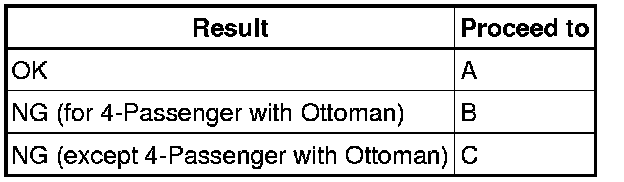

Result





B -- REPLACE TELEVISION DISPLAY ASSEMBLY Removal

C -- REPLACE TELEVISION DISPLAY ASSEMBLY Removal

A -- USE SIMULATION METHOD TO CHECK Electronic Circuit Inspection Procedure
