Rear Seat Entertainment System

AUDIO / VISUAL: REAR SEAT ENTERTAINMENT SYSTEM: B15A5: Rear Seat Entertainment System Malfunction
B15A5 - Rear Seat Entertainment System Malfunction

DESCRIPTION

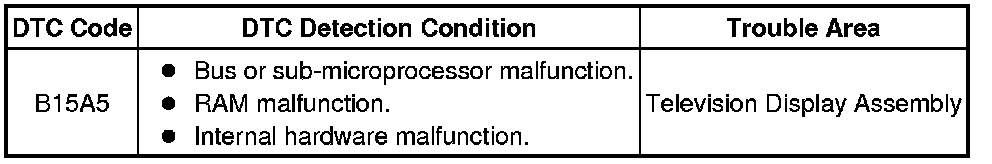

* This DTC is stored when a malfunction occurs in the television display assembly.





INSPECTION PROCEDURE

PROCEDURE

1. CLEAR DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

NEXT -- Continue to next step.

2. CHECK FOR DTC

(a) Check for DTCs and check if the same DTC is output again.

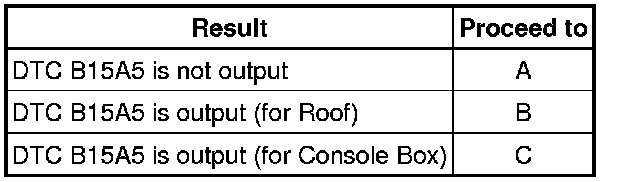

Result





B -- REPLACE TELEVISION DISPLAY ASSEMBLY Removal

C -- REPLACE TELEVISION DISPLAY ASSEMBLY Removal

A -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
