Electro Multi Vision System

AUDIO / VISUAL: ELECTRO MULTI VISION SYSTEM: B1585: USB Media Malfunction
B1585 - USB Media Malfunction

DESCRIPTION

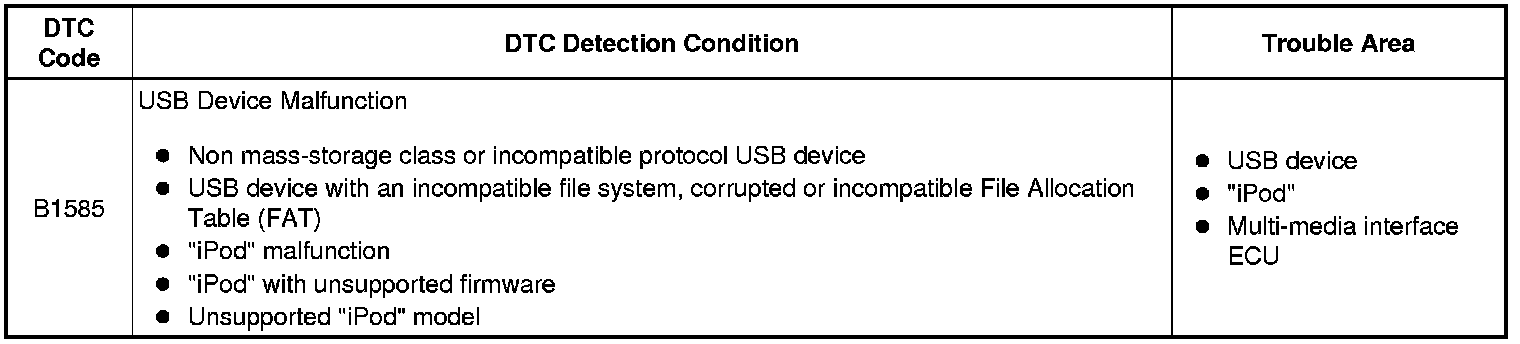

This DTC is stored when a malfunction occurs in a connected device.





INSPECTION PROCEDURE

PROCEDURE

1. REPLACE USB DEVICE OR "iPod"

(a) Disconnect the USB device or "iPod" from the stereo jack adapter.

(b) Turn the engine switch off.

HINT
When one of these DTCs has been stored, is necessary to turn off the engine switch to make it possible for the vehicle to recognize a new device when it is connected.

(c) Turn the engine switch on (ACC).

(d) Connect a known good USB device or "iPod" to the stereo jack adapter.

HINT
* If the malfunction occurred when a USB device was in use, use another USB device for the inspection. If the malfunction occurred when an "iPod" was in use, use another "iPod" for the inspection.
* Refer to System Description for compatible formats and versions System Description.

NEXT -- Continue to next step.

2. CHECK FOR DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(b) Check for DTCs and check if the same trouble occurs again.

OK:

No DTCs are output

NG -- REPLACE MULTI-MEDIA INTERFACE ECU Removal

OK -- USB DEVICE FORMAT WAS INCOMPATIBLE, "iPod" VERSION WAS INCOMPATIBLE, OR USB DEVICE OR "iPod" WAS DEFECTIVE
