AIR CONDITIONING: AIR CONDITIONING SYSTEM: B1499/99: Multiplex Communication Circuit
B1499/99 - Multiplex Communication Circuit

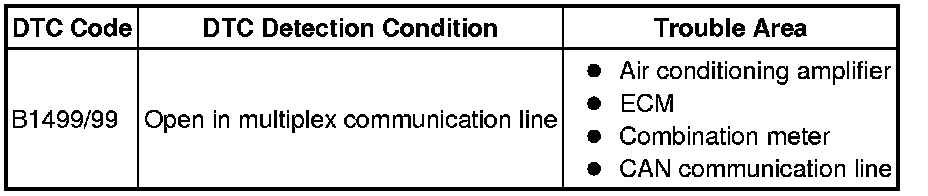

DESCRIPTION

The air conditioning amplifier communicates data with the ECM and combination meter through the CAN communication system.

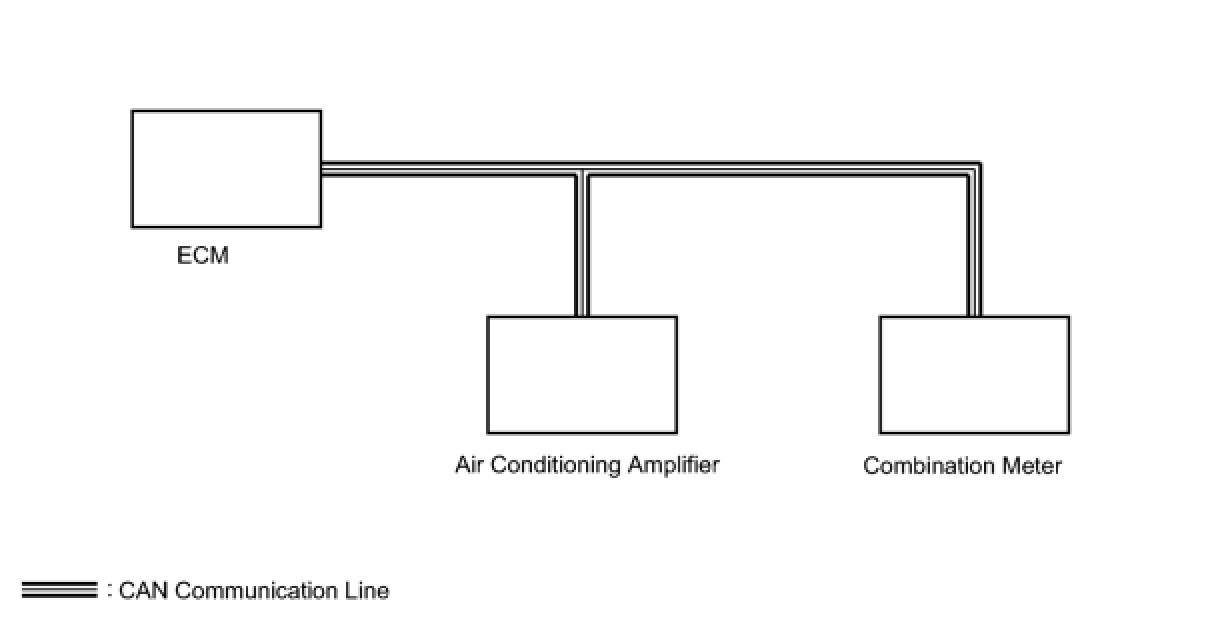

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC

(a) Clear the DTC DTC Check / Clear.

(b) Check for the DTC DTC Check / Clear.

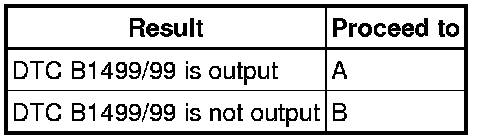

Result:





B -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting

A -- GO TO CAN COMMUNICATION SYSTEM How to Proceed With Troubleshooting
