Home >> Lexus >> 2012 >> IS 350C V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Brakes and Traction Control >> System Specifications >> Brake (Front) >> Torque Specifications

Torque Specifications





SPECIFICATIONS: BRAKE (FRONT): TORQUE SPECIFICATIONS

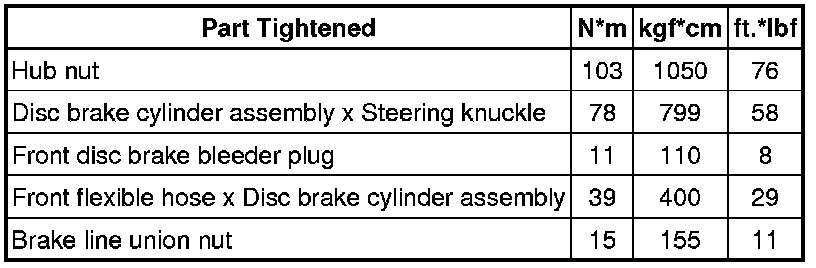

for Floating Type Caliper

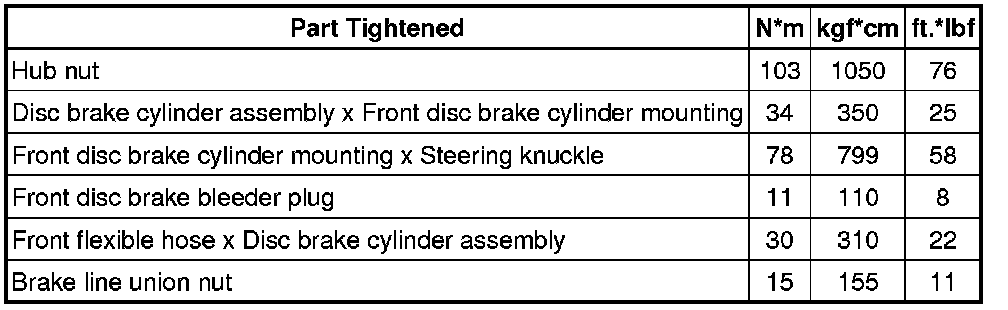

for Opposed Type Caliper
