Home >> Lexus >> 2012 >> IS 350C V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Seat Switch >> Locations >> Front Power Seat Control System (w/o Memory)

Front Power Seat Control System (w/o Memory)

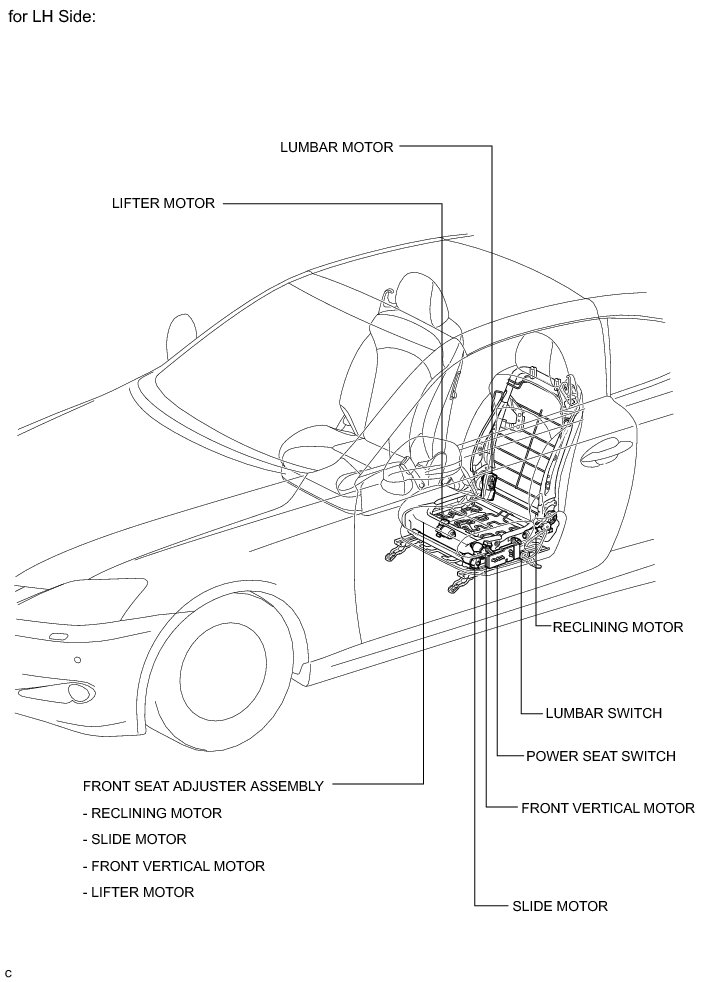

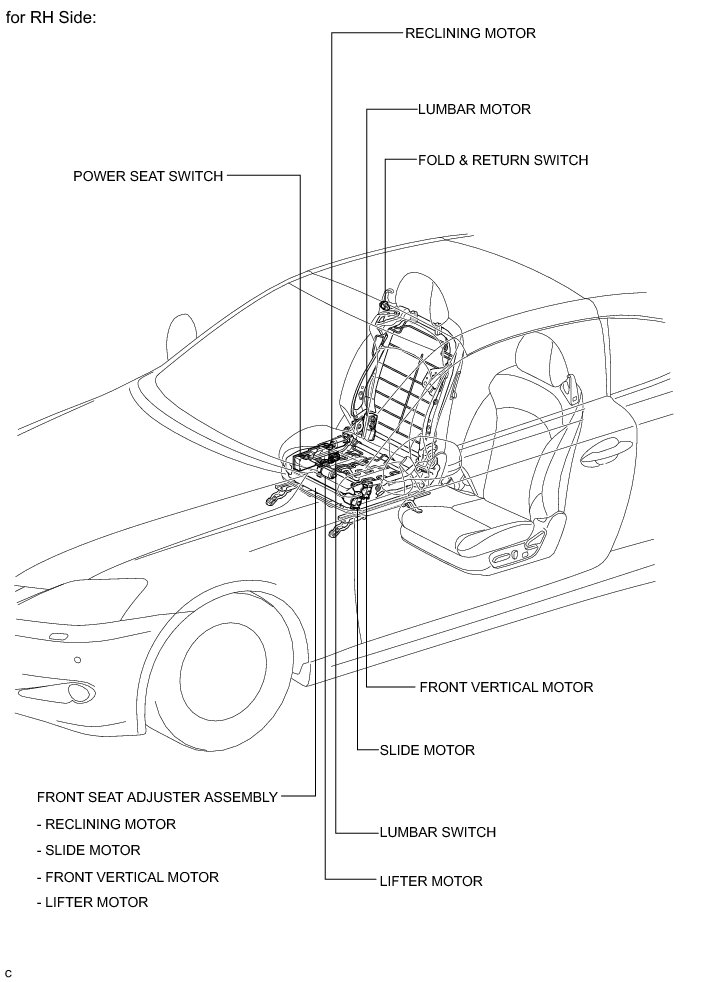

SEAT: FRONT POWER SEAT CONTROL SYSTEM (w/o Memory): PARTS LOCATION
