Installation

LIGHTING (EXT): HIGH INTENSITY DISCHARGE HEADLIGHT BULB: INSTALLATION

1. INSTALL DISCHARGE HEADLIGHT BULB

(a) Lock the set spring to install the discharge headlight bulb as shown in the illustration.





(b) Turn the light control ECU socket in the direction indicated by the arrow in the illustration to connect it.





2. REMOVE NO. 1 HEADLIGHT COVER GASKET

(a) Install a new No. 1 headlight cover gasket.

3. INSTALL NO. 1 HEADLIGHT BACK COVER

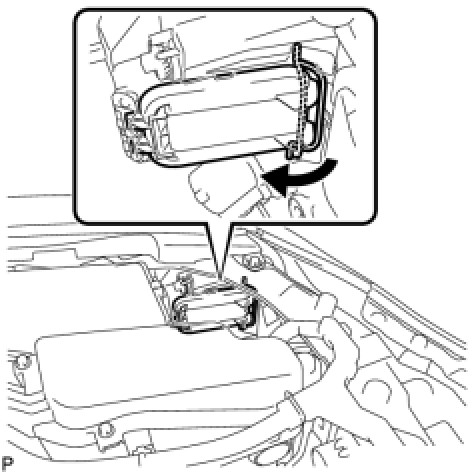

(a) Install the No. 1 headlight back cover as shown in the illustration.





4. INSTALL WASHER HOSE (for LH Side)

(a) Install the washer hose with the bolt.





Torque : 5.5 Nm (56 kgf-cm, 49 in-lbf)

5. INSTALL ENGINE ROOM SIDE COVER LH (for LH Side) Installation

6. INSTALL AIR CLEANER CASE SUB-ASSEMBLY (for RH Side)

for 2GR-FSE Installation

for 4GR-FSE Installation

7. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE (for RH Side) Installation

8. INSTALL INLET NO. 1 AIR CLEANER (for RH Side)

for 2GR-FSE Installation

for 4GR-FSE Installation

9. INSTALL ENGINE ROOM SIDE COVER RH (for RH Side) Installation

10. INSTALL COOL AIR INTAKE DUCT SEAL Installation

11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
