46 - 53 - Position of Parts In Engine Compartment

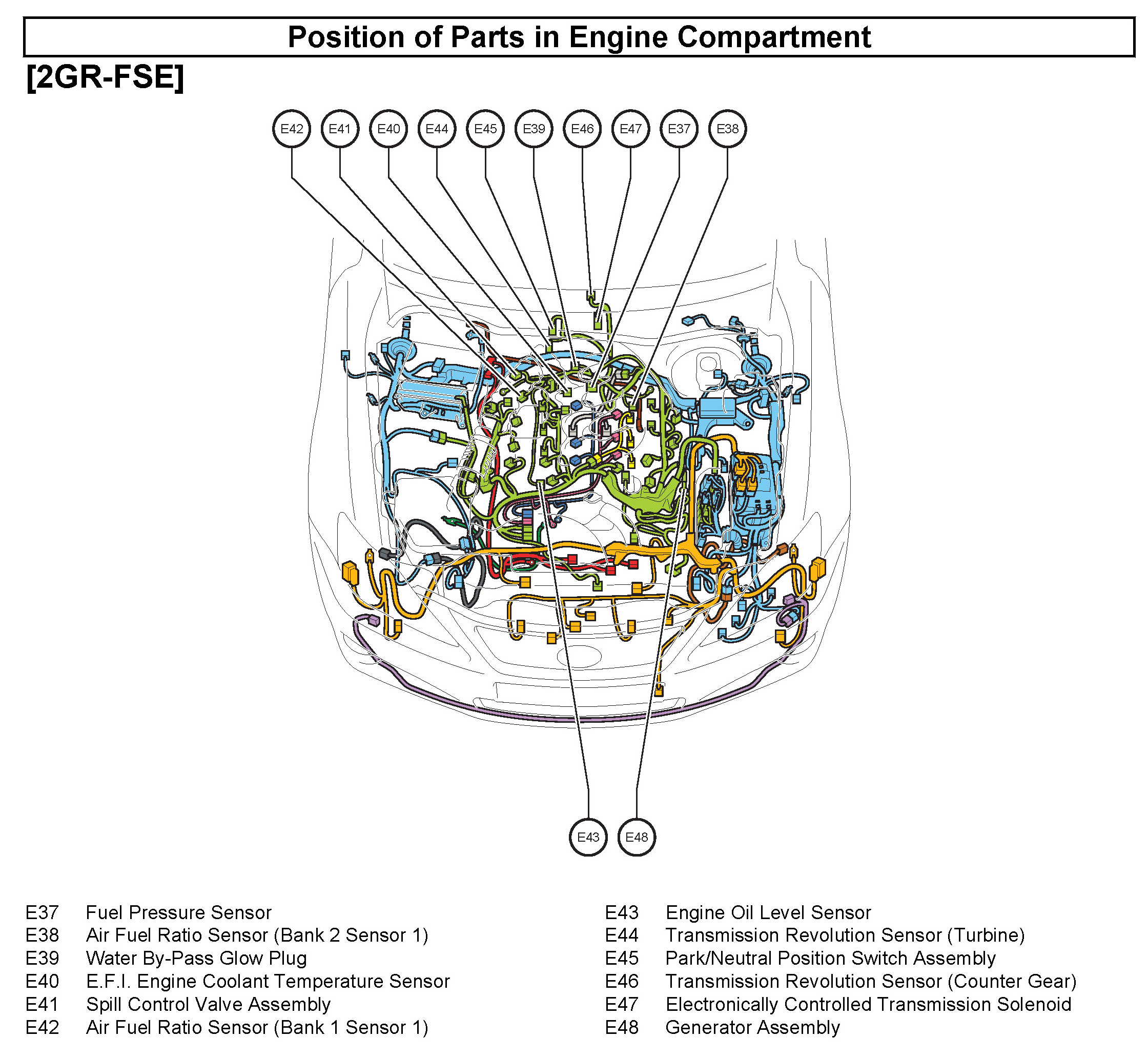

46 - Position of Parts in Engine Compartment:

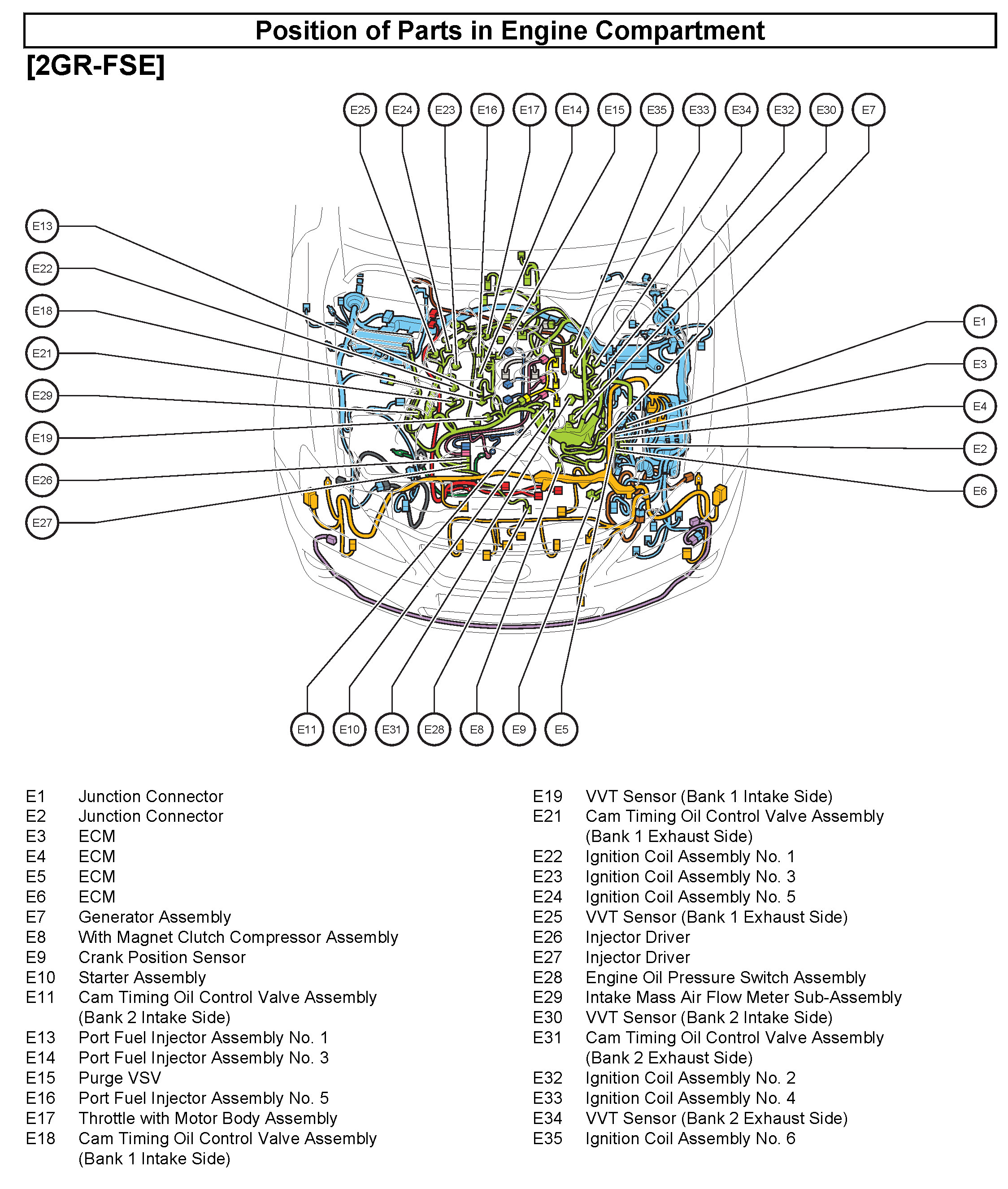

47 - Position of Parts in Engine Compartment:

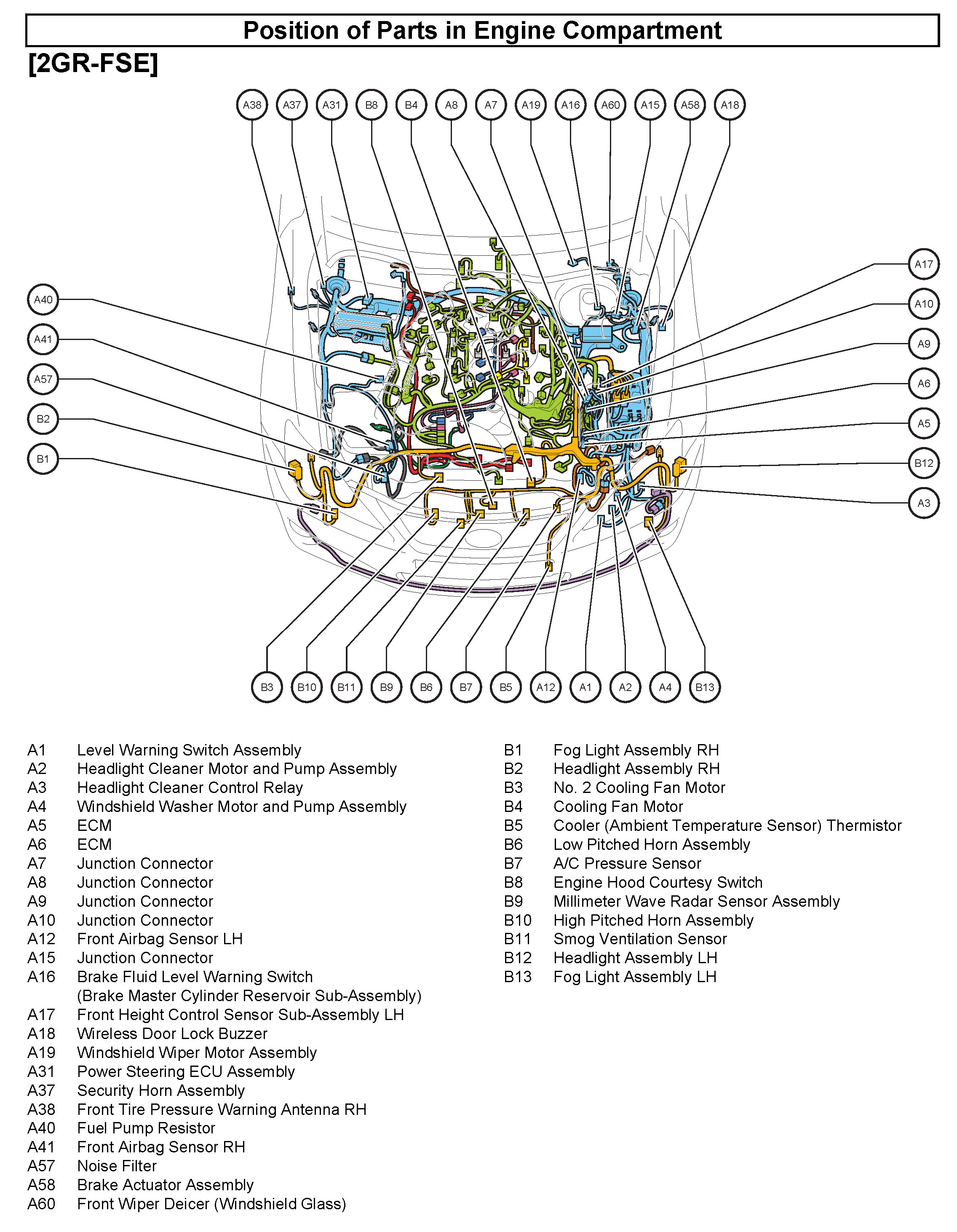

48 - Position of Parts in Engine Compartment:

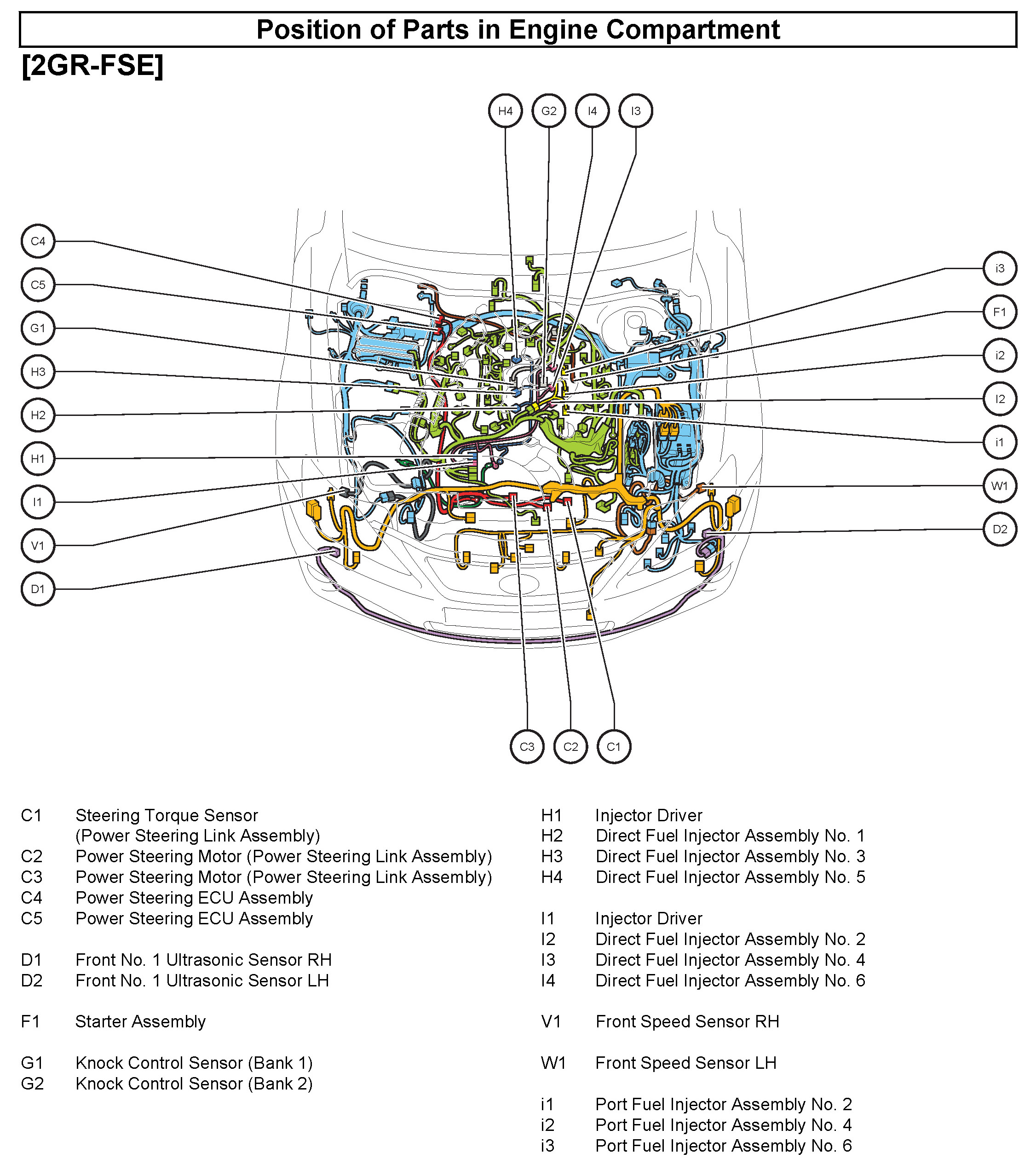

49 - Position of Parts in Engine Compartment:
