Home >> Lexus >> 2012 >> IS 350C V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Locations >> Audio And Visual System (w/o Navigation System with Multi-display)

Audio And Visual System (w/o Navigation System with Multi-display)

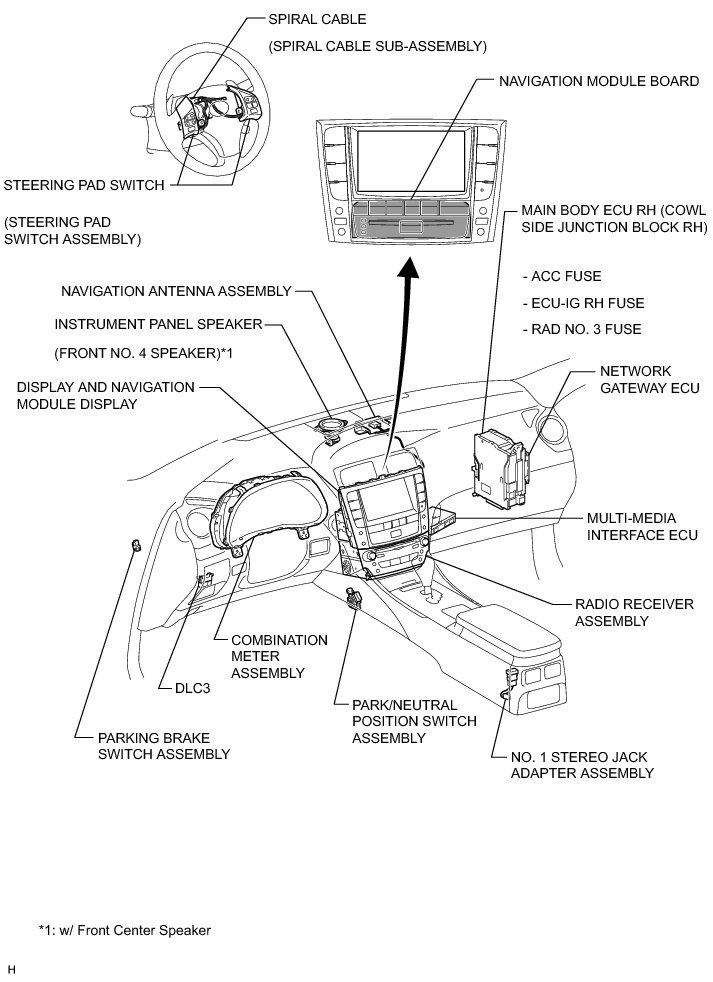

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM (w/o Navigation System with Multi-display): PARTS LOCATION
