Shift Paddle Switch





A760E AUTOMATIC TRANSMISSION: SHIFT PADDLE SWITCH: INSPECTION

1. INSPECT SHIFT PADDLE SWITCH

(a) Measure the resistance between each terminal when the paddle shift is moved to each position.

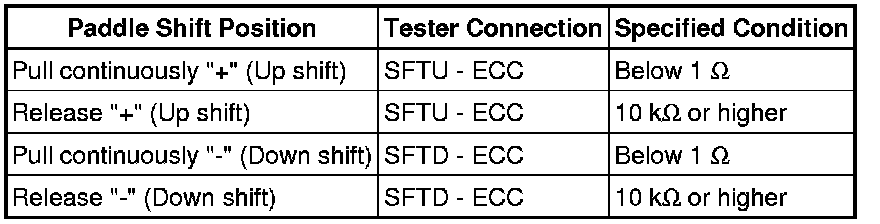

Standard resistance





If the resistance value is not as specified, replace the shift paddle switch.
