Removal

A760E AUTOMATIC TRANSMISSION: EXTENSION HOUSING REAR OIL SEAL: REMOVAL

1. REMOVE NO. 2 ENGINE UNDER COVER

2. REMOVE NO. 1 FLOOR UNDER COVER Removal

3. REMOVE NO. 2 FLOOR UNDER COVER Removal

4. REMOVE NO. 1 REAR FLOOR PANEL BRACE Removal

5. REMOVE FRONT CENTER FLOOR BRACE Removal

6. REMOVE OXYGEN SENSOR Removal

7. REMOVE FRONT EXHAUST PIPE ASSEMBLY Removal

8. REMOVE OUTSIDE AIR GUIDE PLATE RH Removal

9. REMOVE FRONT FLOOR NO. 1 HEAT INSULATOR Removal

10. REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY Removal

11. DRAIN AUTOMATIC TRANSMISSION FLUID

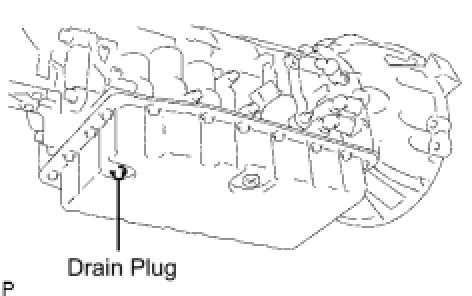

(a) Remove the drain plug, the gasket , and drain the ATF.





(b) Install a new gasket and the drain plug.

Torque : 20 Nm (204 kgf-cm, 15 ft-lbf)

12. REMOVE AUTOMATIC TRANSMISSION FLANGE YOKE ASSEMBLY

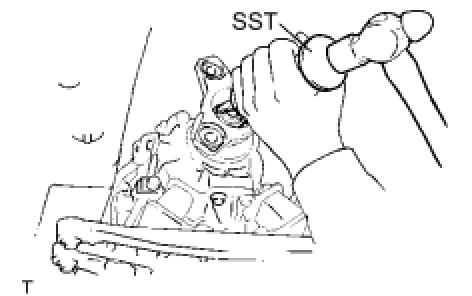

(a) Using SST and a hammer, loosen the staked part of the nut.





SST : 09930-00010

HINT
Move the shift lever to the P position.

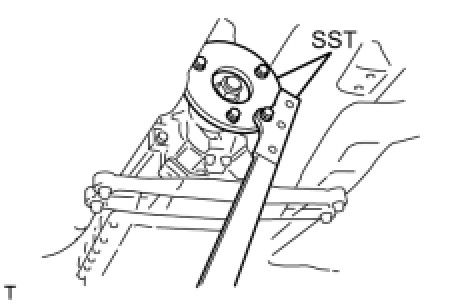

(b) Attach the SST.





SST : 09330-00021

SST : 09950-30012

09955-03040

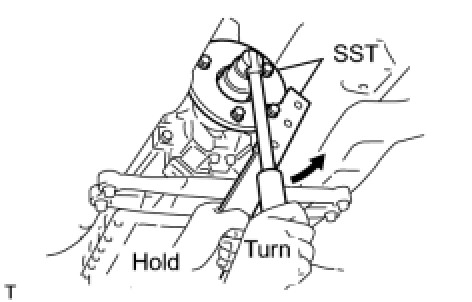

(c) Using SST and a 30 mm socket wrench, remove the nut.





(d) Remove the SST.

(e) Tap the output flange with a plastic hammer to remove it.

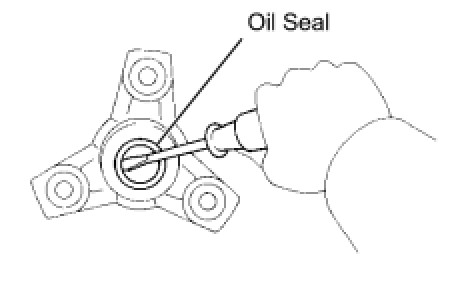

(f) Using a screwdriver, remove the oil seal from the automatic transmission flange yoke.





13. REMOVE AUTOMATIC TRANSMISSION EXTENSION HOUSING OIL SEAL

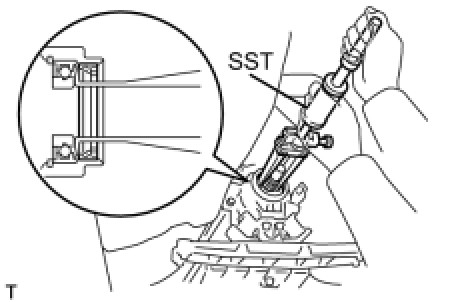

(a) Using SST, remove the oil seal.





SST : 09308-00010
