A760E AUTOMATIC TRANSMISSION: EXTENSION HOUSING REAR OIL SEAL: INSTALLATION

1. INSTALL AUTOMATIC TRANSMISSION EXTENSION HOUSING OIL SEAL

(a) Coat the lip of a new oil seal with MP grease.

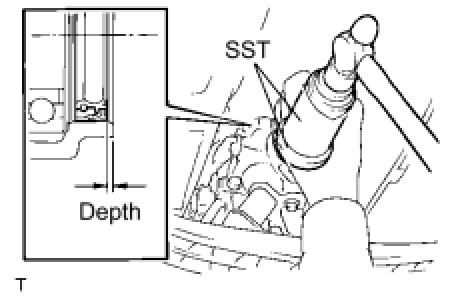

(b) Using SST and a hammer, drive in the oil seal with the lip facing inside of the automatic transmission.





SST : 09316-60011

09316-00011

09316-00051

Oil seal depth from flat end:

1.8 to 2.2 mm (0.071 to 0.087 in.)

2. INSTALL AUTOMATIC TRANSMISSION FLANGE YOKE ASSEMBLY

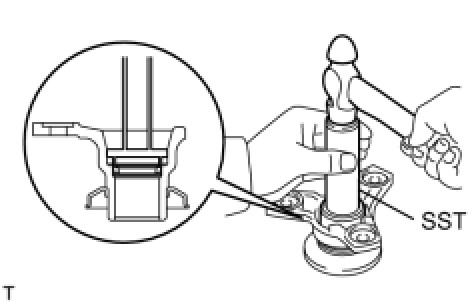

(a) Using SST and a hammer, drive in a new oil seal.





SST : 09517-36010

(b) Install the automatic transmission flange yoke.

(c) Attach the SST.

SST : 09330-00021

SST : 09950-30012

09955-03040

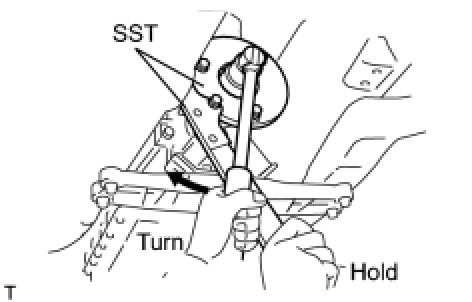

(d) Using SST and a 30 mm socket wrench, install and tighten a new nut.





Torque : 126 Nm (1,285 kgf-cm, 93 ft-lbf)

(e) Using a chisel and hammer, securely stake the nut.

3. INSTALL PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY Installation

4. INSTALL FRONT FLOOR NO. 1 HEAT INSULATOR Installation

5. INSTALL OUTSIDE AIR GUIDE PLATE RH Installation

6. INSTALL FRONT EXHAUST PIPE ASSEMBLY Installation

7. INSTALL OXYGEN SENSOR Installation

8. INSTALL FRONT CENTER FLOOR BRACE Installation

9. INSTALL NO. 1 REAR FLOOR PANEL BRACE Installation

10. INSTALL NO. 2 FLOOR UNDER COVER Installation

11. INSTALL NO. 1 FLOOR UNDER COVER Installation

12. ADD AUTOMATIC TRANSMISSION FLUID

Procedures

13. INSTALL NO. 2 ENGINE UNDER COVER

14. CHECK FOR EXHAUST GAS LEAKS Installation
