Installation

AUDIO / VISUAL: REAR CENTER SPEAKER: INSTALLATION

1. INSTALL REAR STEREO COMPONENT SPEAKER ASSEMBLY (w/ Front Center Speaker)

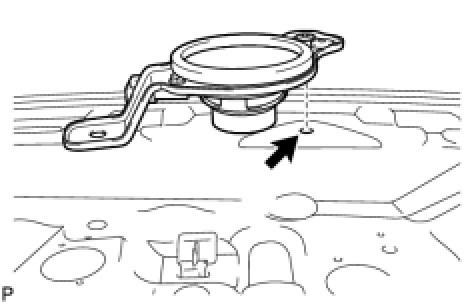

(a) Engage the clip to the vehicle body to temporarily install the rear stereo component speaker assembly.

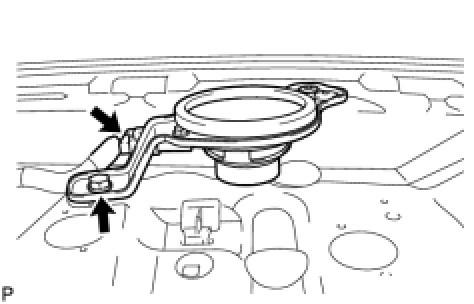

(b) Install the rear stereo component speaker assembly with the bolt.





(c) Connect the connector.

2. INSTALL NO. 2 PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Front Center Speaker) Installation

3. INSTALL STEREO COMPONENT SPEAKER ASSEMBLY

(a) Install the stereo component speaker assembly with the 4 bolts.





HINT

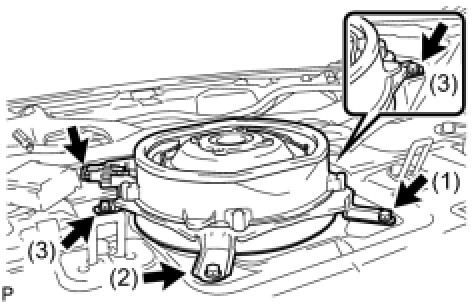

Install the bolts in the order shown in the illustration.

(b) Connect the connector.

4. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY Installation

5. INSTALL ROOF SIDE INNER GARNISH LH Installation

6. INSTALL ROOF SIDE INNER GARNISH RH

7. INSTALL REAR SIDE SEAT GARNISH LH Installation

8. INSTALL REAR SIDE SEAT GARNISH RH

9. INSTALL REAR DOOR SCUFF PLATE LH Installation

10. INSTALL REAR DOOR SCUFF PLATE RH

11. INSTALL REAR SEATBACK ASSEMBLY Installation

12. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY

13. INSTALL REAR SEAT HEADREST ASSEMBLY

14. INSTALL REAR SEAT CUSHION ASSEMBLY Installation
