Home >> Lexus >> 2012 >> IS 350 AWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Differential Carrier >> Service and Repair >> Removal and Replacement >> Differential Carrier Assembly >> Components

Components

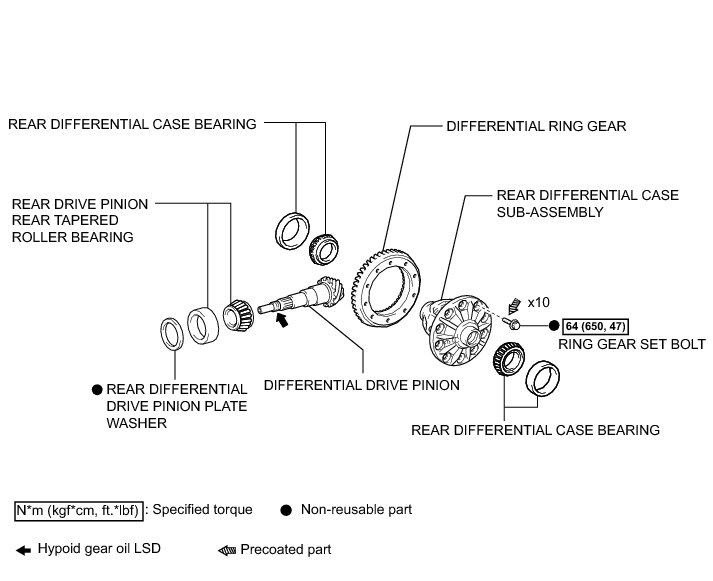

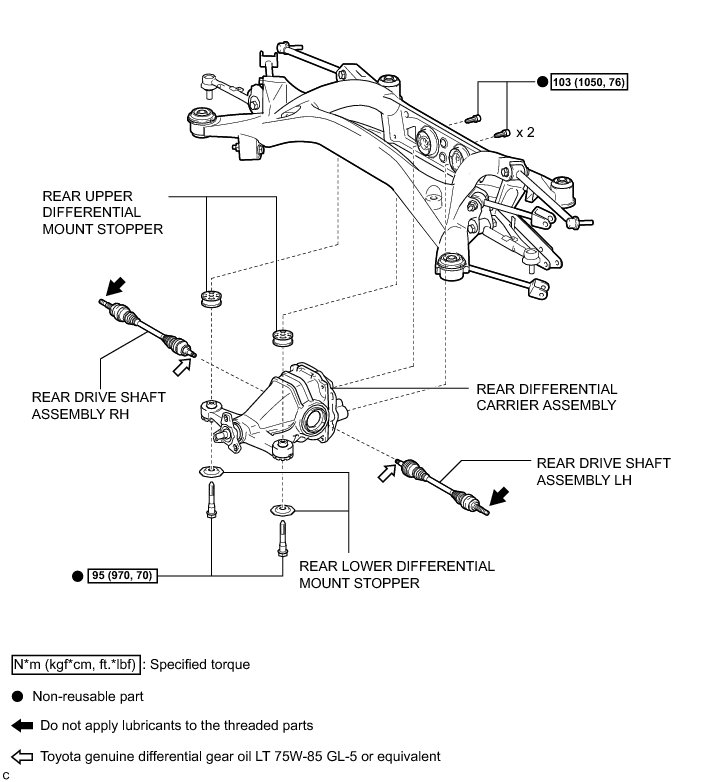

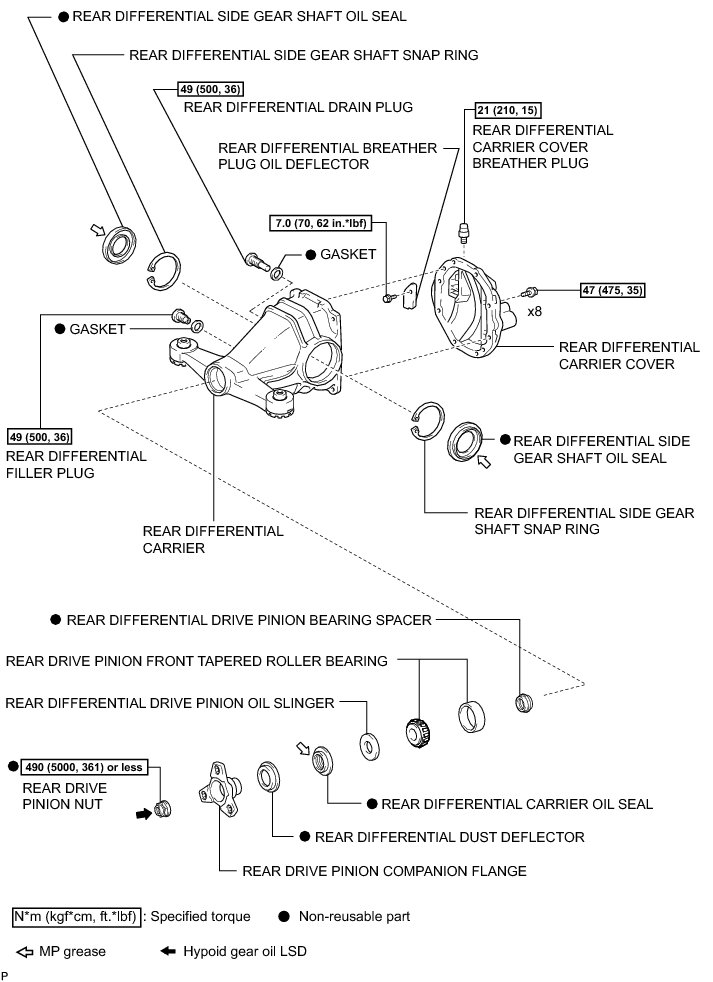

DIFFERENTIAL: DIFFERENTIAL CARRIER ASSEMBLY (for 2GR-FSE): COMPONENTS
