48 - 51 - Position of Parts In Engine Compartment

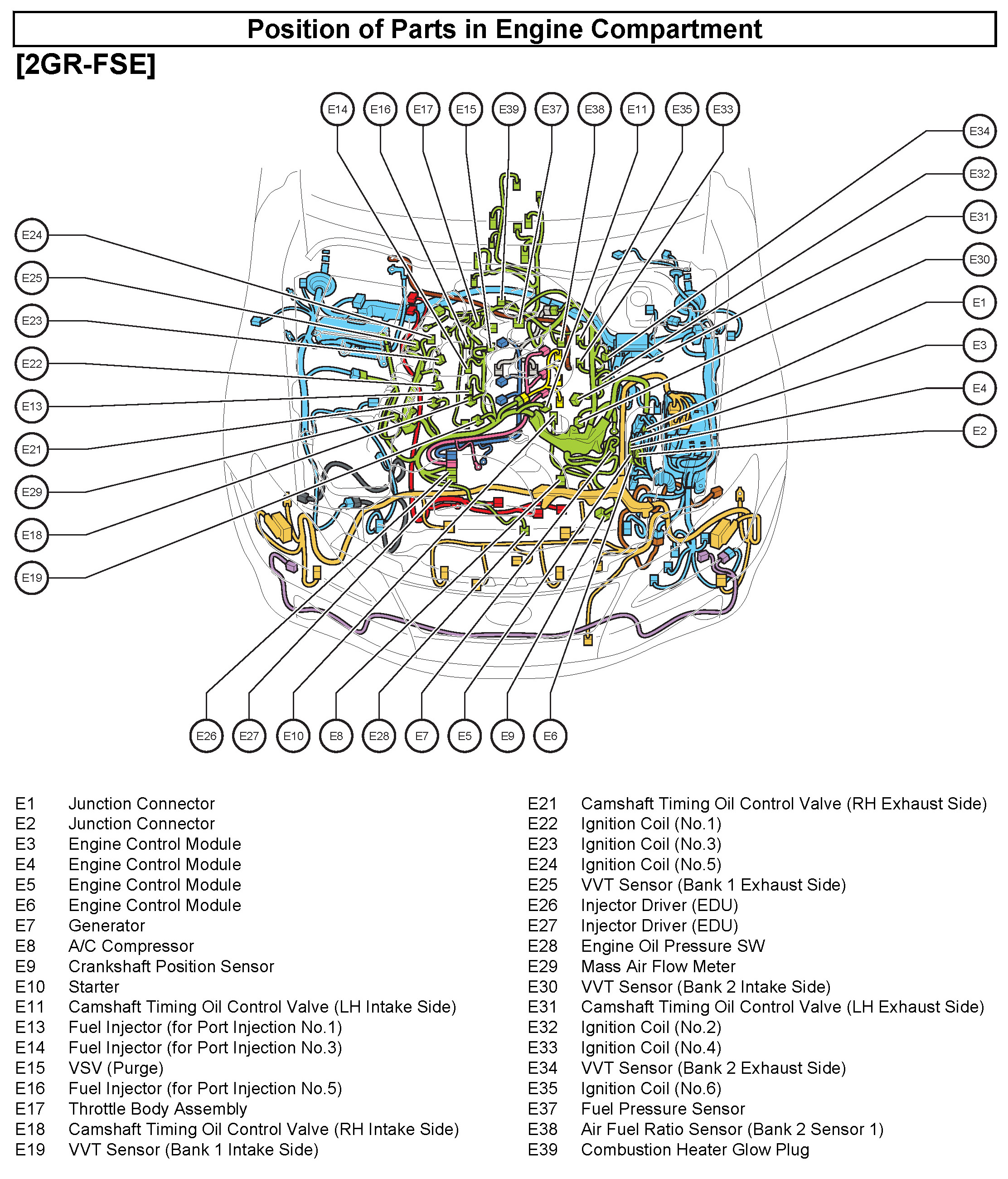

48 - Position of Parts in Engine Compartment:

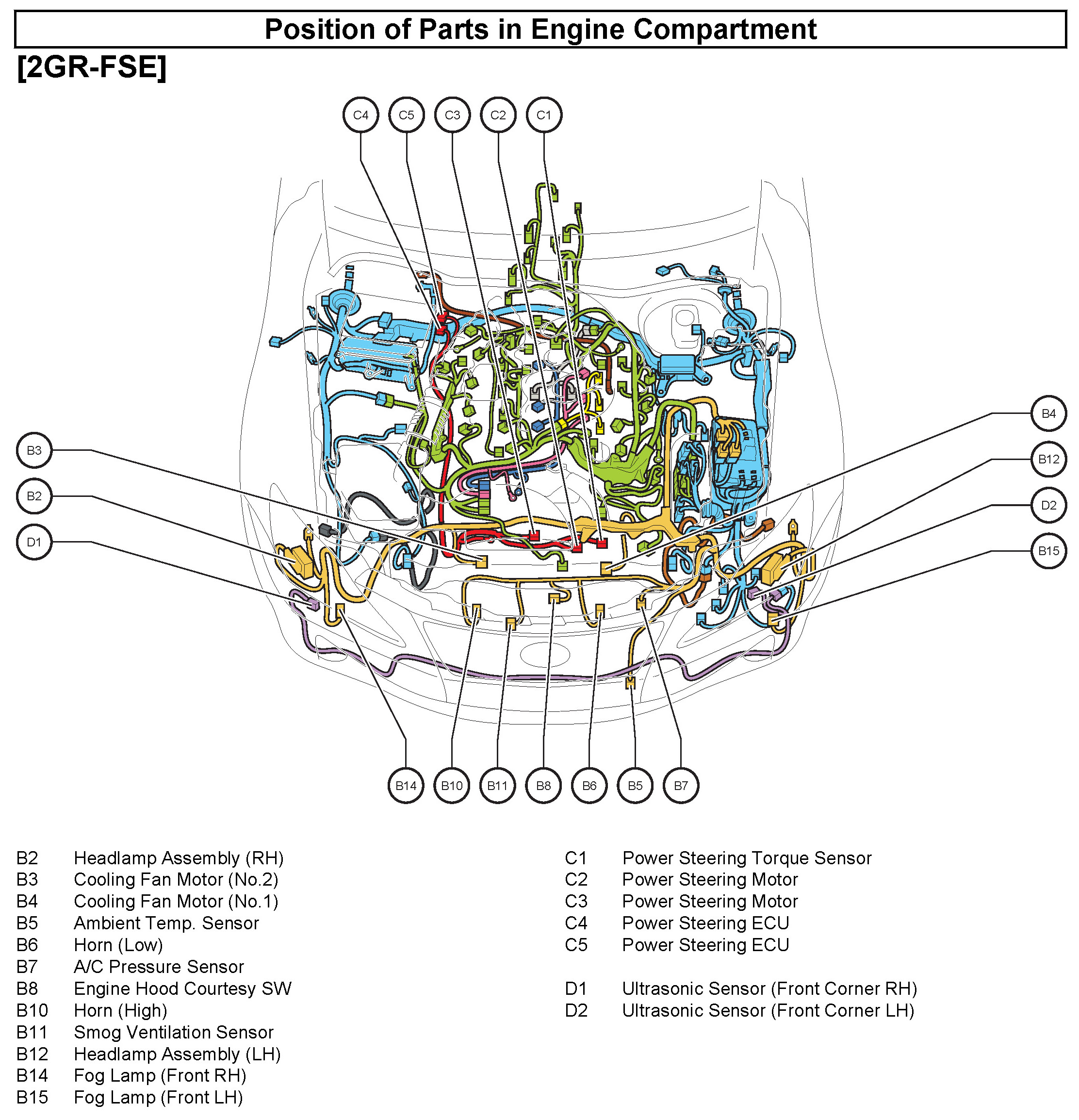

49 - Position of Parts in Engine Compartment:

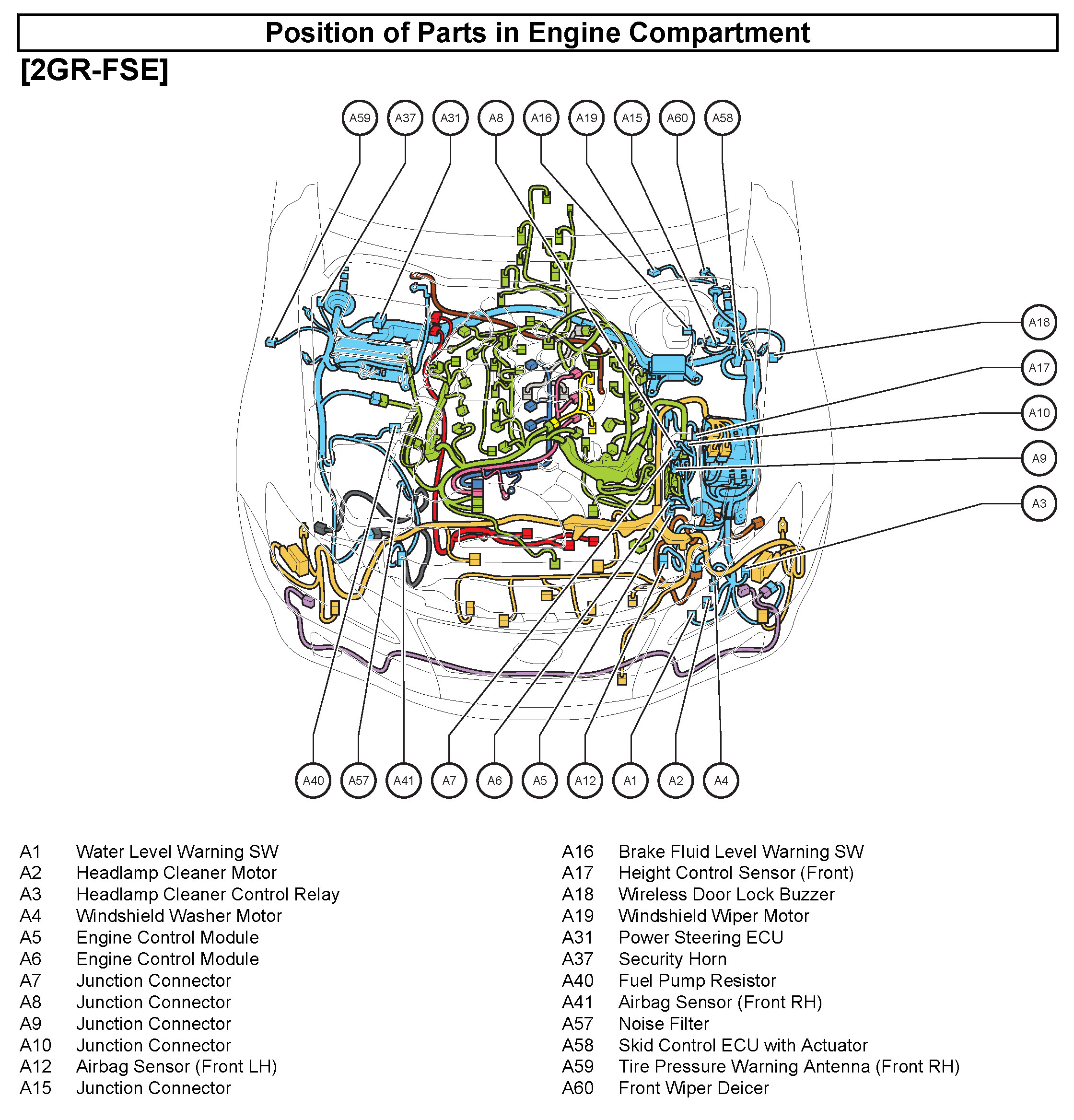

50 - Position of Parts in Engine Compartment:

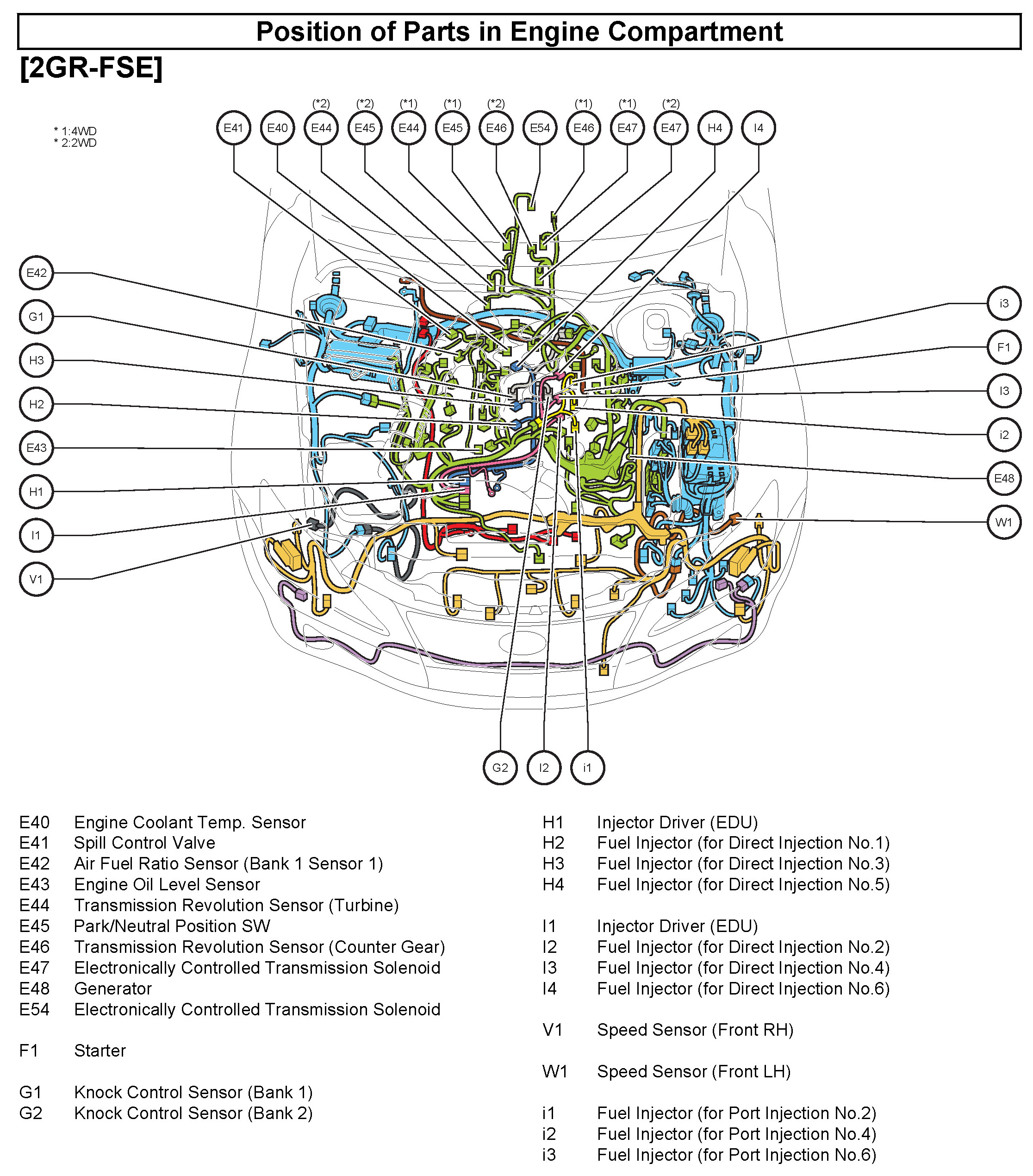

51 - Position of Parts in Engine Compartment:
