How To Proceed With Troubleshooting

STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT
*: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. CHECK MULTIPLEX COMMUNICATION SYSTEM

NEXT -- Continue to next step.

3. CHECK AND CLEAR DTCS*

(a) Refer to DTC Check/Clear Power Tilt and Power Telescopic Steering Column System.

NEXT -- Continue to next step.

4. PROBLEM SYMPTOM CONFIRMATION

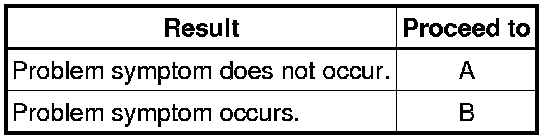

Result:





B -- Go to step 6
A -- Continue to next step.

5. SYMPTOM SIMULATION

NEXT -- Continue to next step.

6. CHECK FOR DTCs*

(a) Check for DTCs Power Tilt and Power Telescopic Steering Column System.

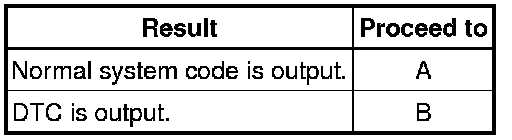

Result:





B -- Go to step 8
A -- Continue to next step.

7. PROBLEM SYMPTOMS TABLE

NEXT -- Go to step 9

8. DTC CHART

NEXT -- Continue to next step.

9. CIRCUIT INSPECTION*

NEXT -- Continue to next step.

10. IDENTIFICATION OF PROBLEM

NEXT -- Continue to next step.

11. REPAIR

NEXT -- Continue to next step.

12. CONFIRMATION TEST*

NEXT -- END
