32-34 - Cowl Side J/B LH - Cowl Side Left
32-34 - Cowl Side J/B LH - Cowl Side Left

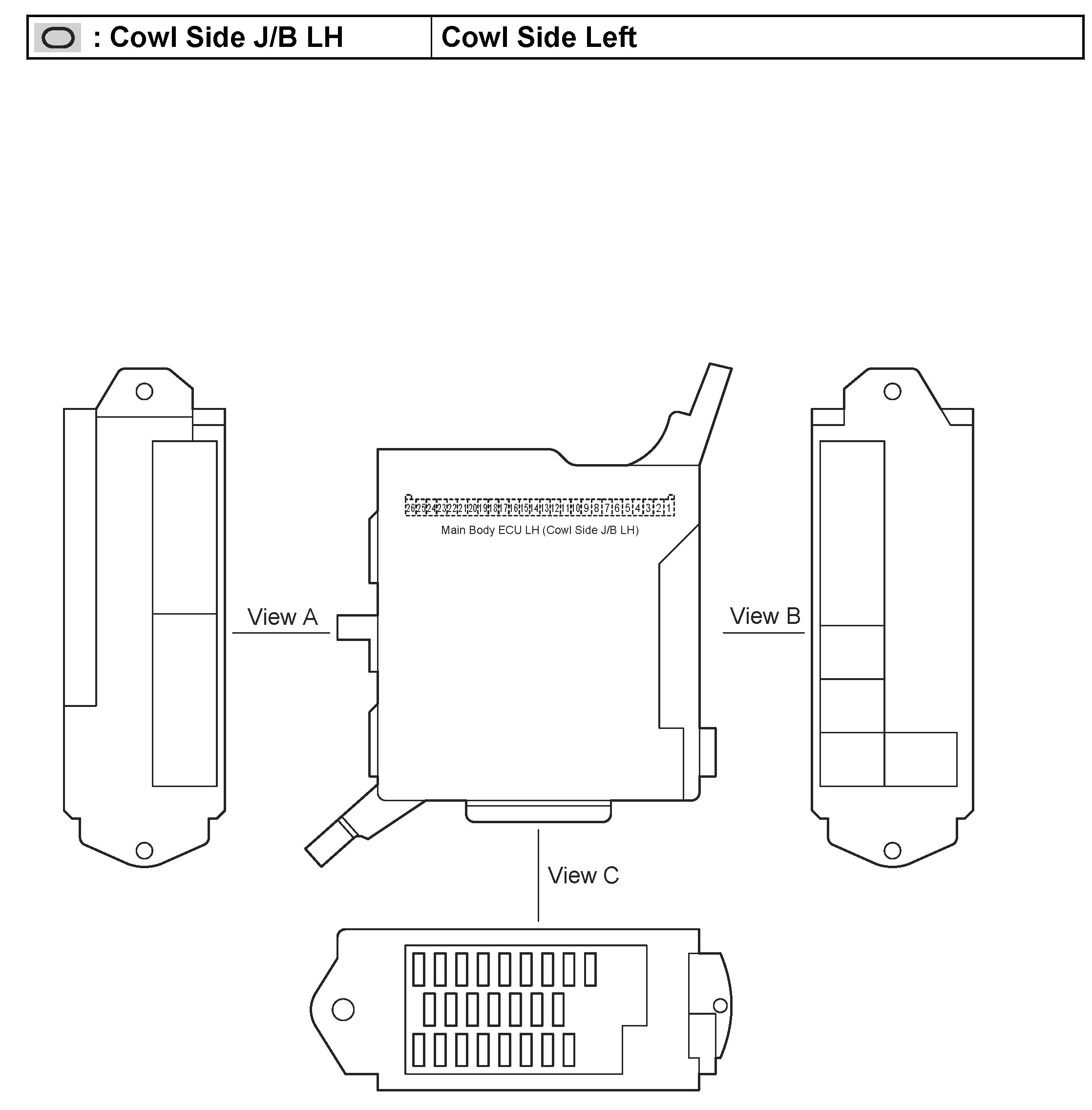

32 - Cowl Side J/B LH - Cowl Side Left:

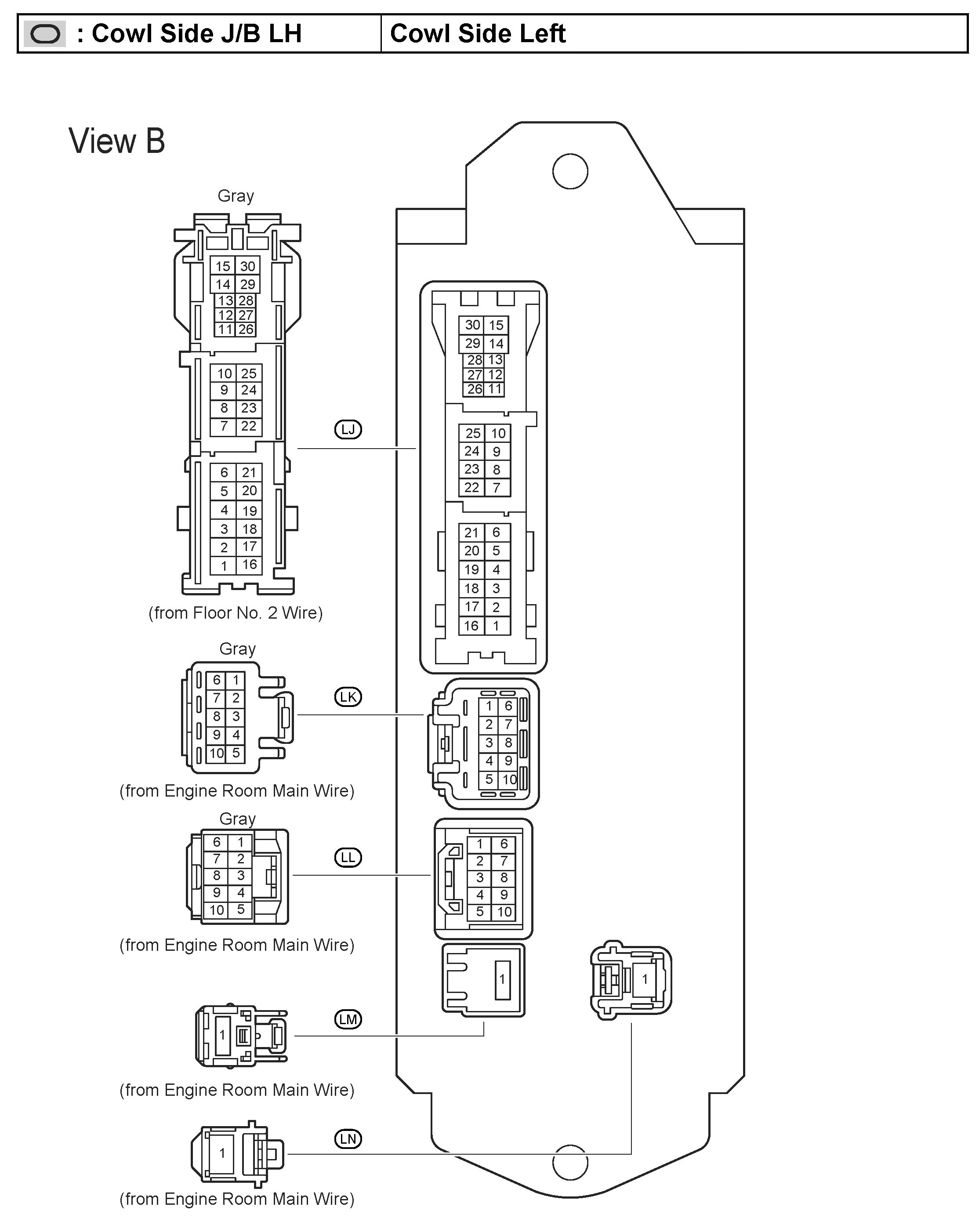

33 - Cowl Side J/B LH - Cowl Side Left:

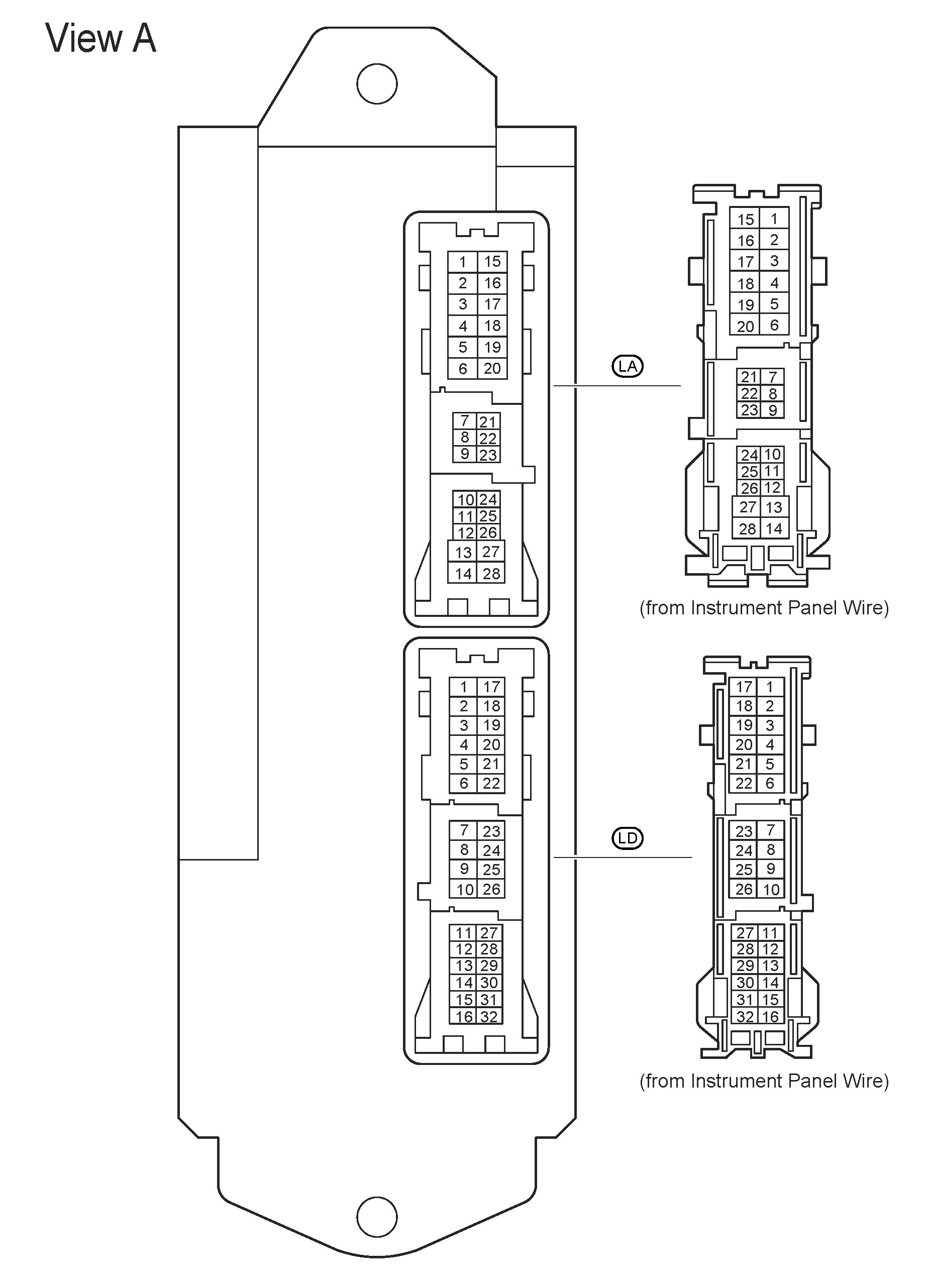

34 - Cowl Side J/B LH - Cowl Side Left:
