Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Relays and Modules - Power and Ground Distribution
>>
Relay Box
>>
Diagrams
>>
Connector Views
>>
22-23 - Engine Room R/B and Engine Room J/B - Engine Compartment Left
22-23 - Engine Room R/B and Engine Room J/B - Engine Compartment Left

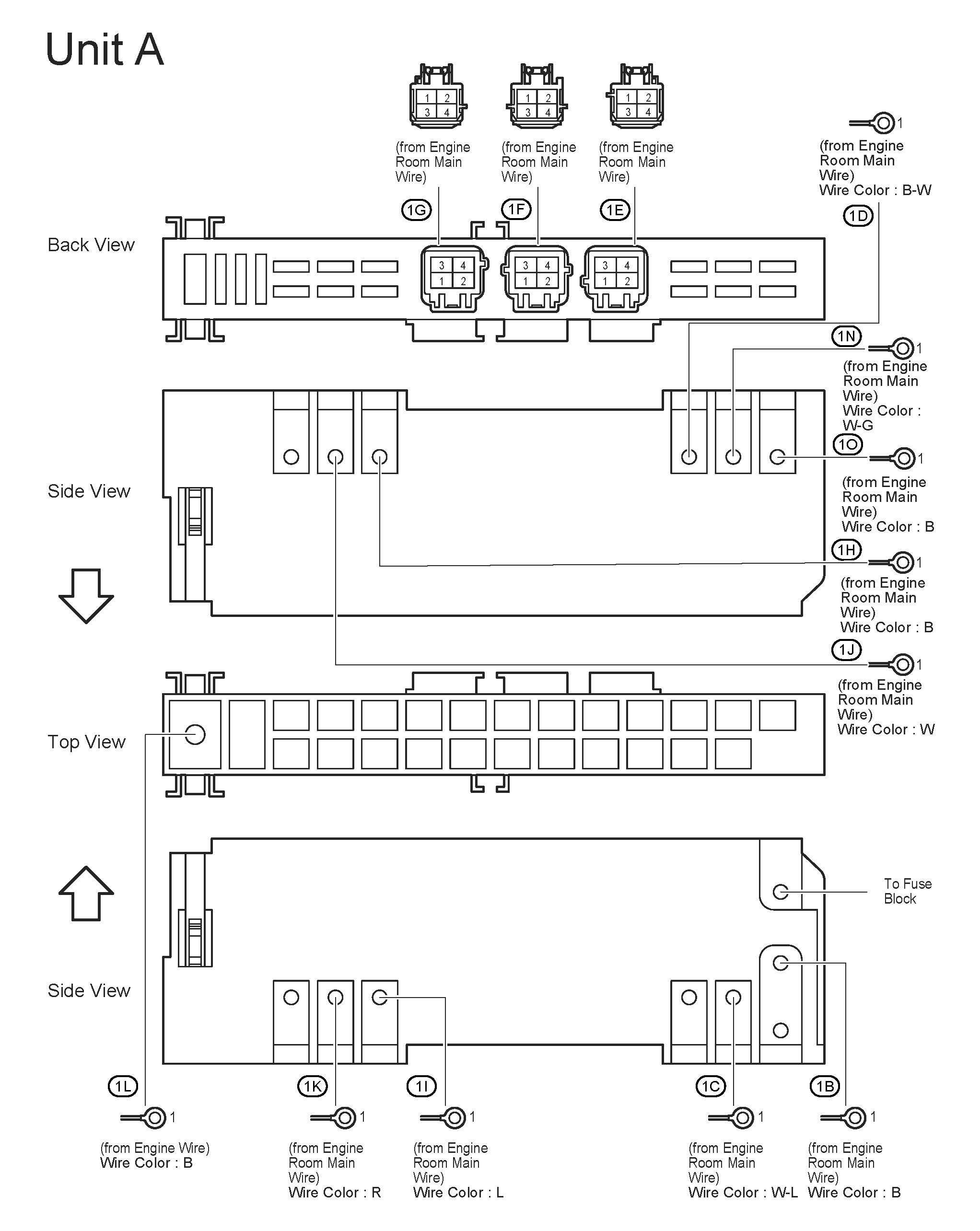

22 - Engine Room R/B, Engine Room J/B - Engine Compartment Left:
23 - Engine Room R/B, Engine Room J/B - Engine Compartment Left:
