System Diagram





SEAT BELT: SEAT BELT WARNING SYSTEM: SYSTEM DIAGRAM

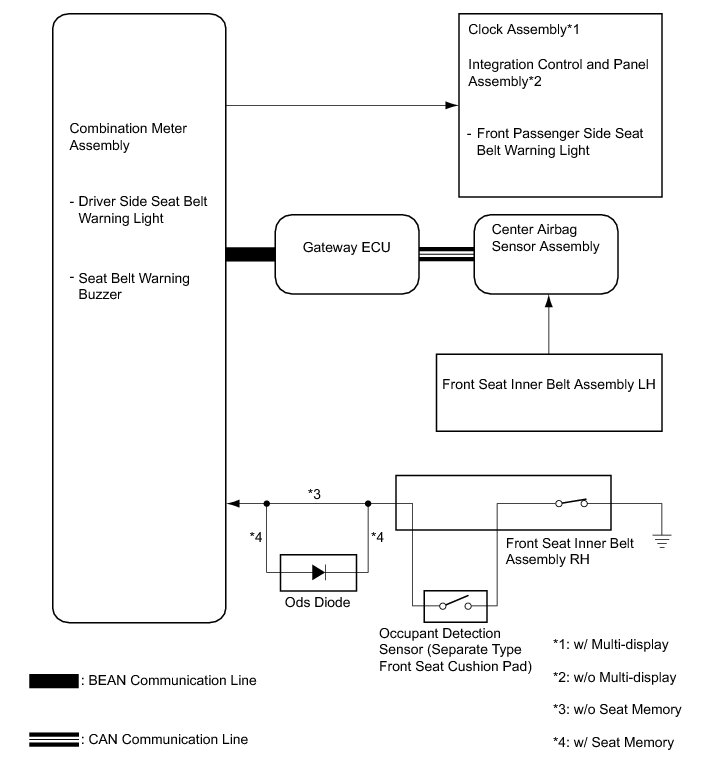

1. w/ Occupant Classification System

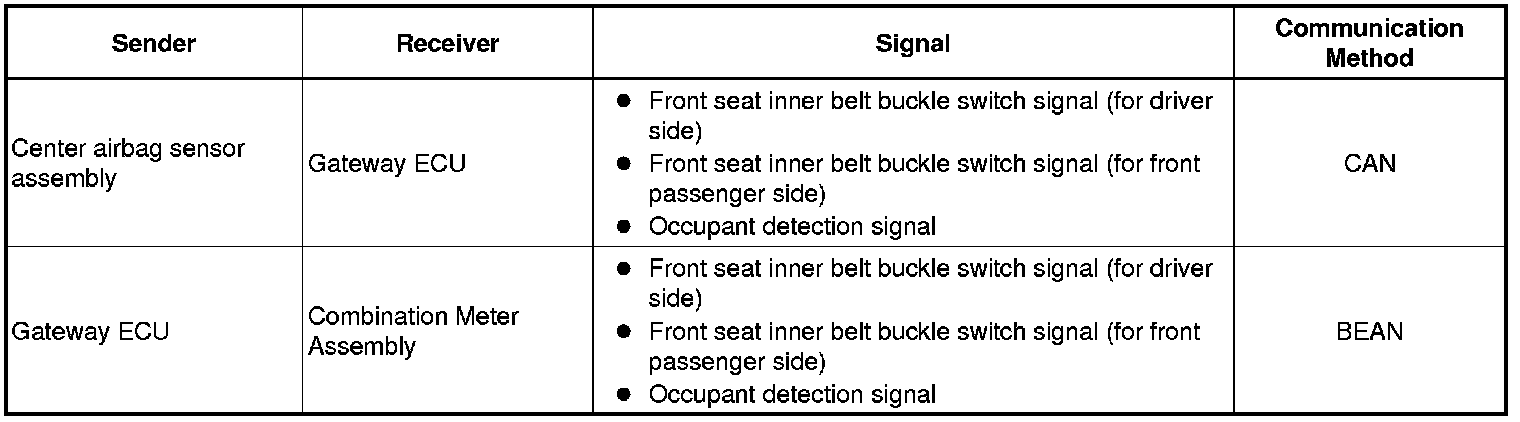

Communication Table





2. w/o Occupant Classification System

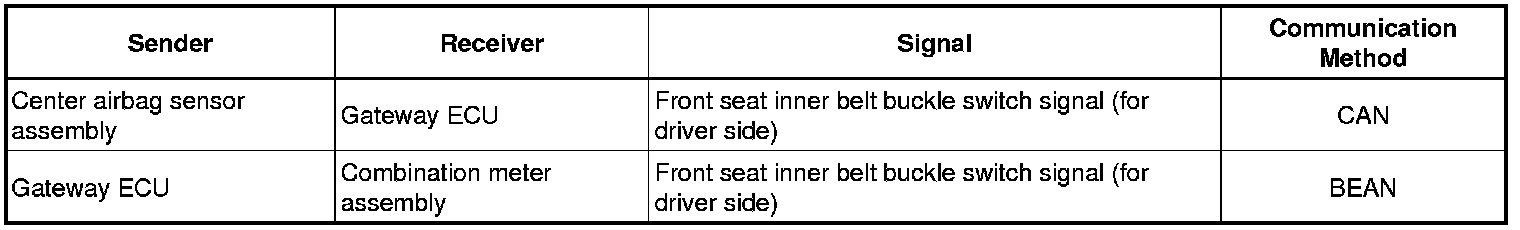

Communication Table
