Home >> Lexus >> 2012 >> IS 250C V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Diagrams >> Components >> 46 - 53 - Position of Parts In Engine Compartment

46 - 53 - Position of Parts In Engine Compartment

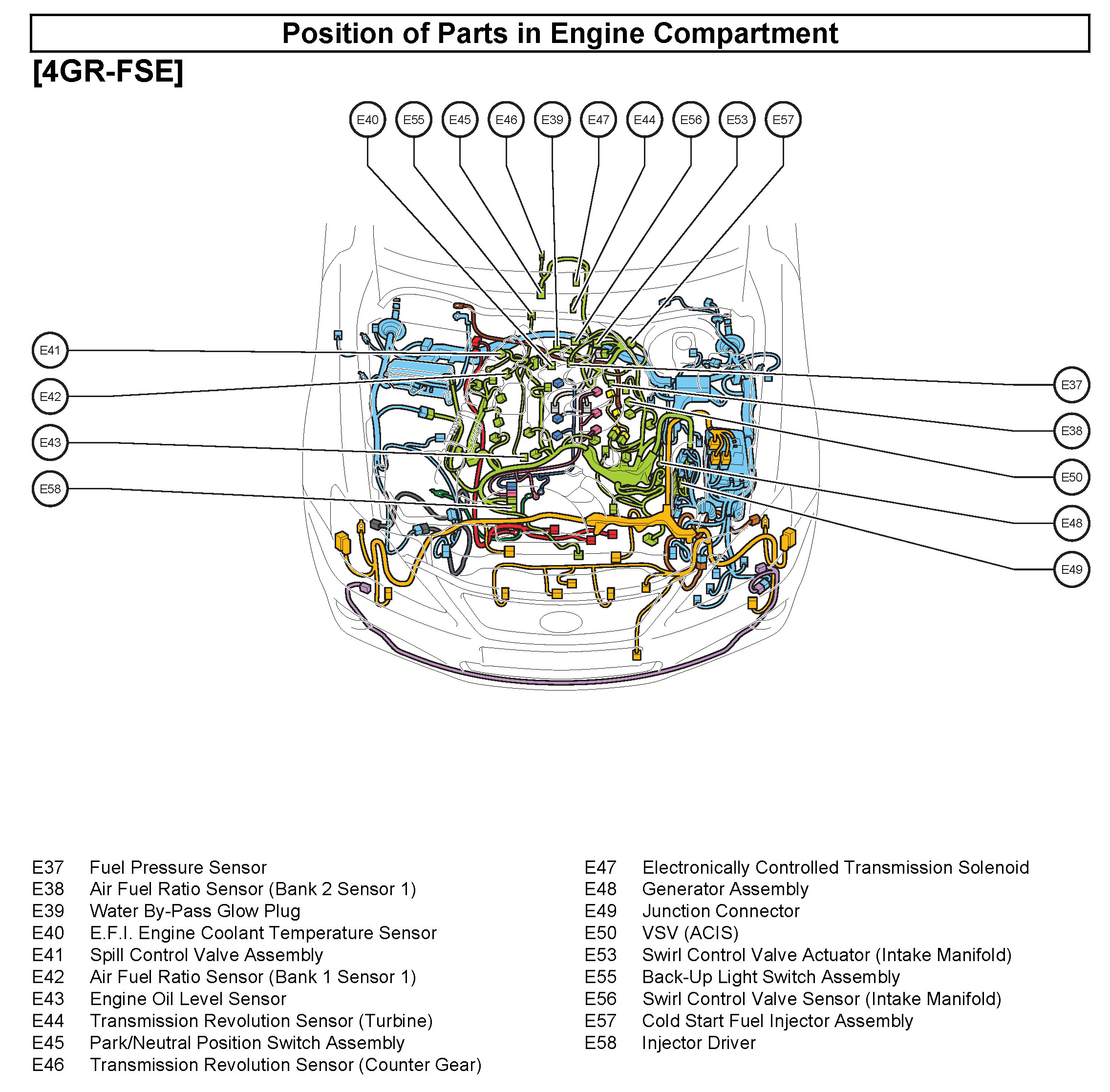

50 - Position of Parts in Engine Compartment:

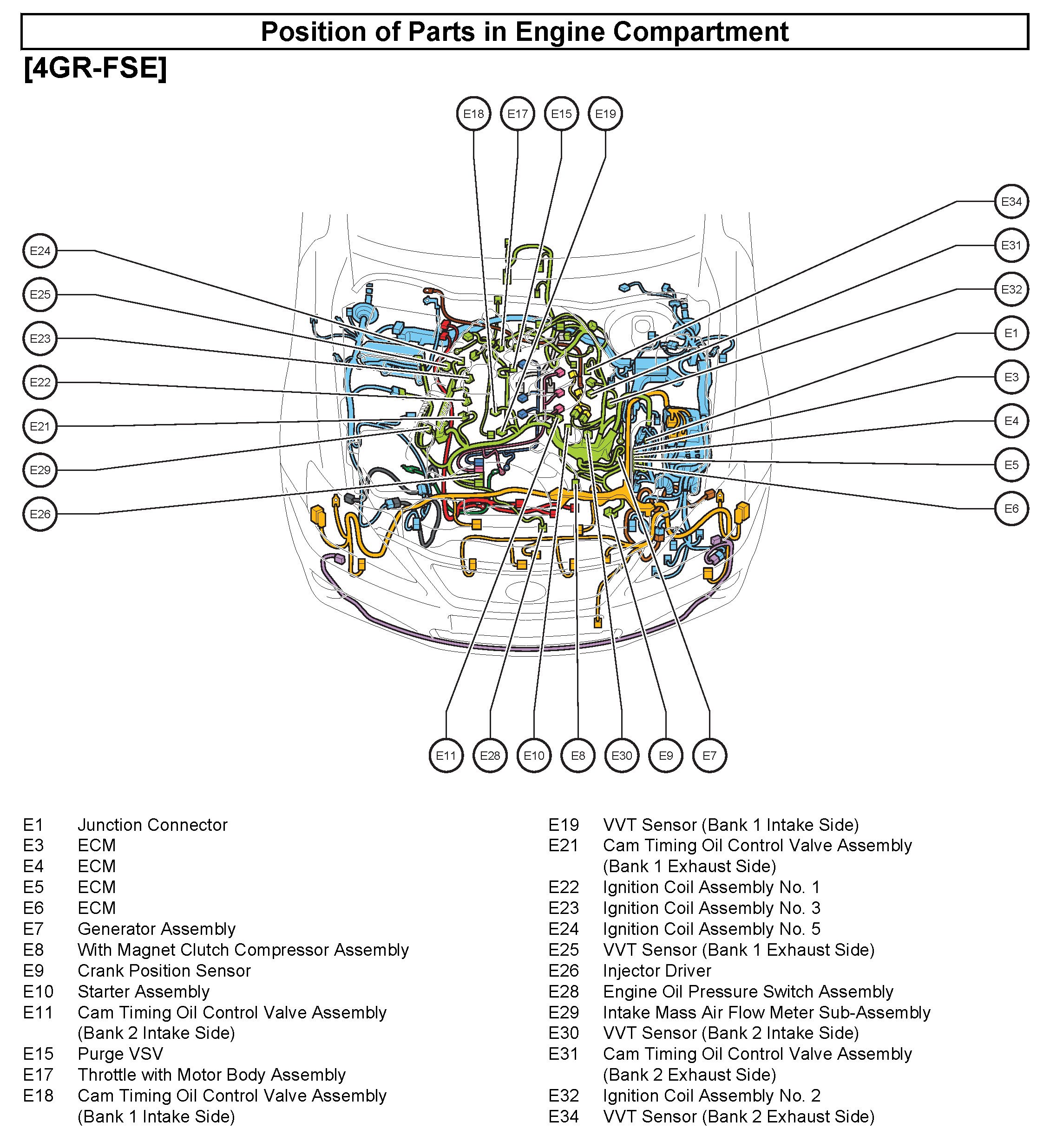

51 - Position of Parts in Engine Compartment:

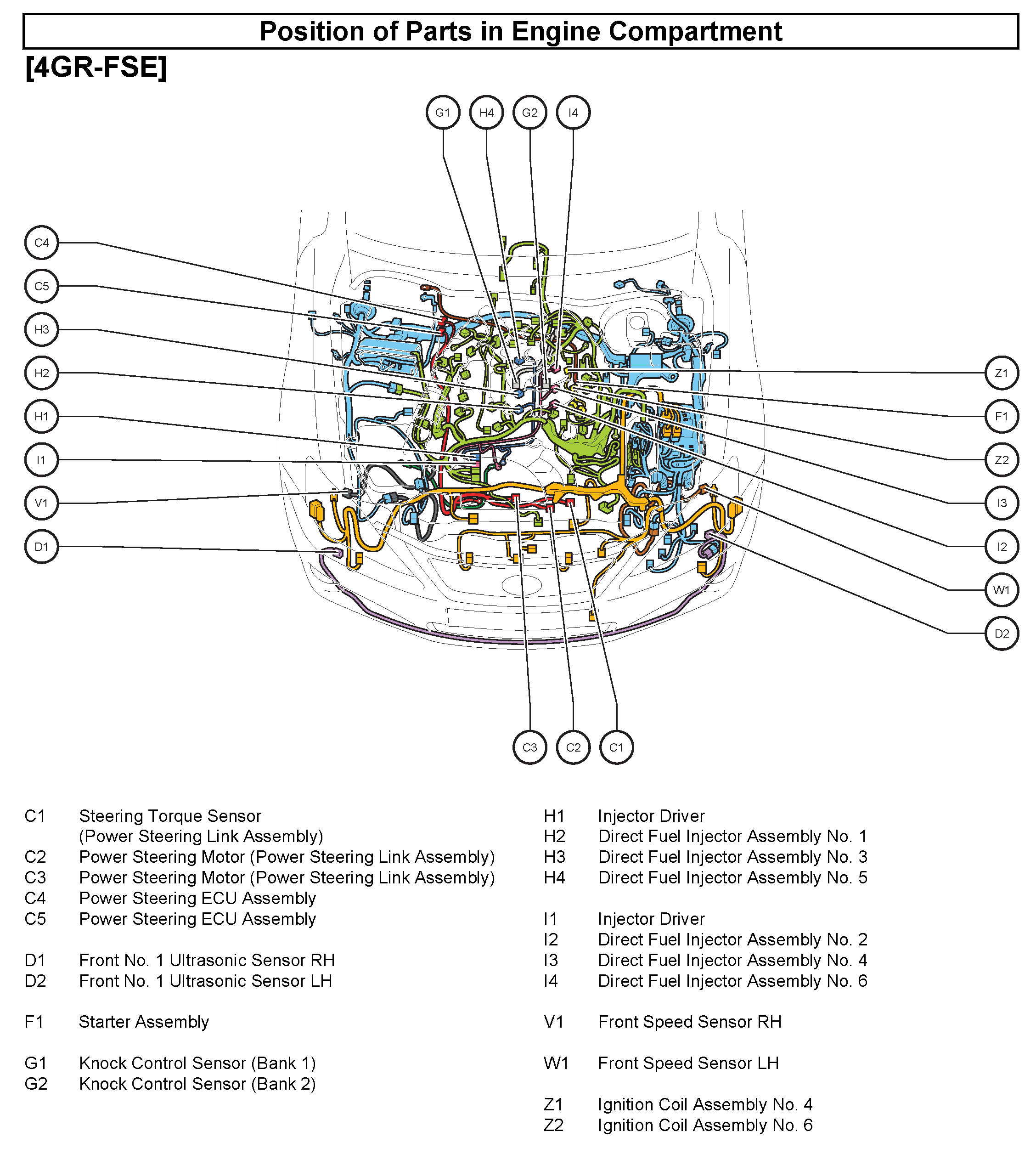

52 - Position of Parts in Engine Compartment:

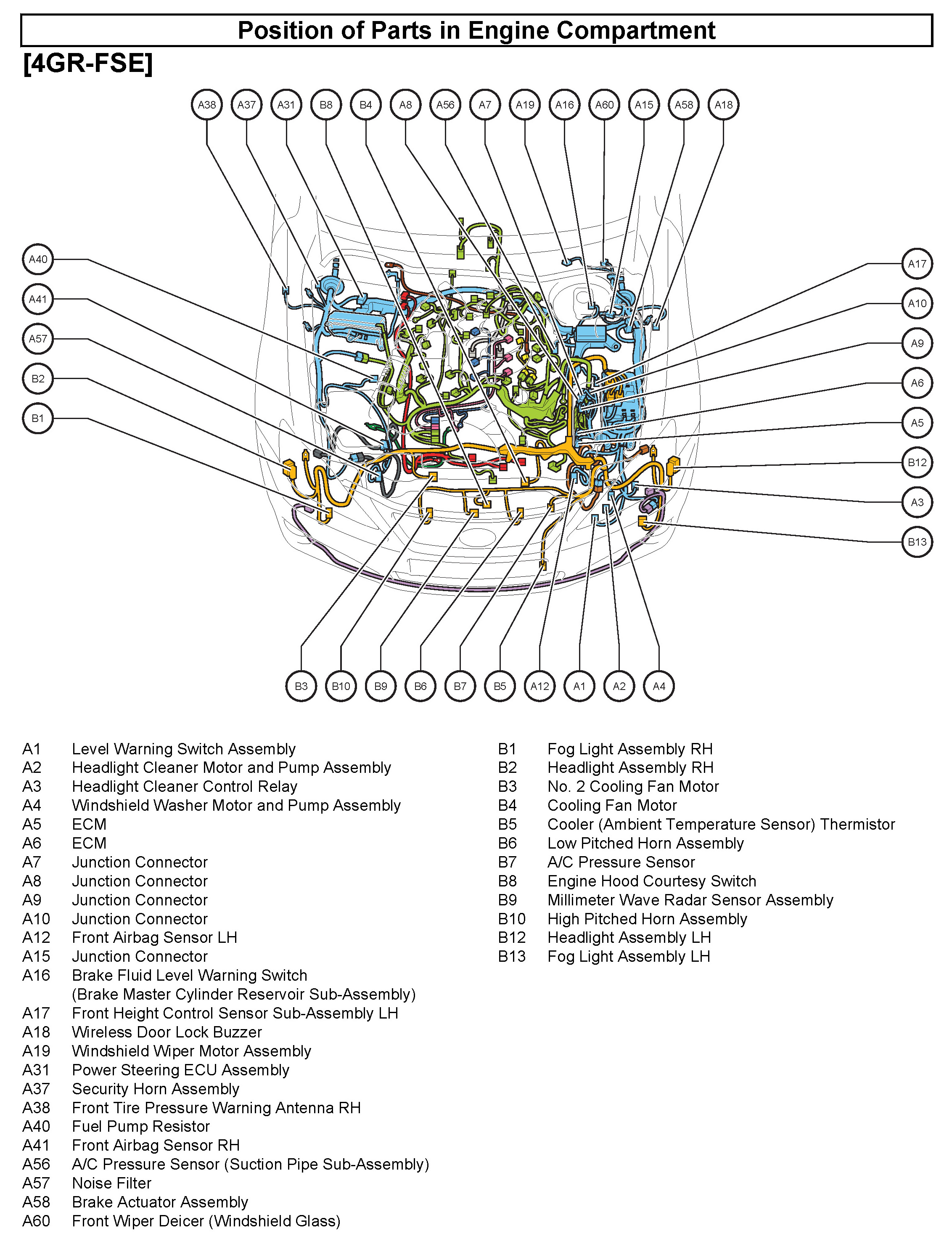

53 - Position of Parts in Engine Compartment:
