Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Trunk / Liftgate
>>
Description and Operation
>>
System Diagram
System Diagram

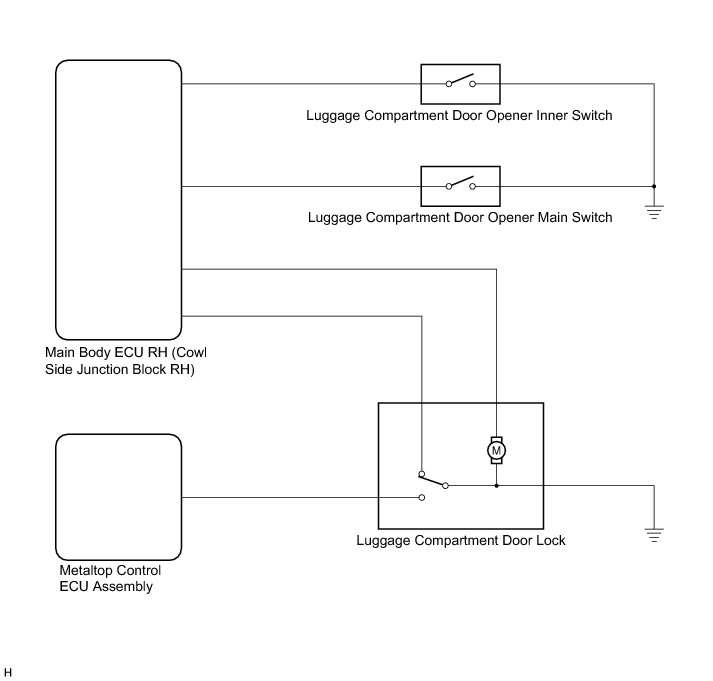

DOOR / HATCH: LUGGAGE COMPARTMENT DOOR OPENER SYSTEM: SYSTEM DIAGRAM

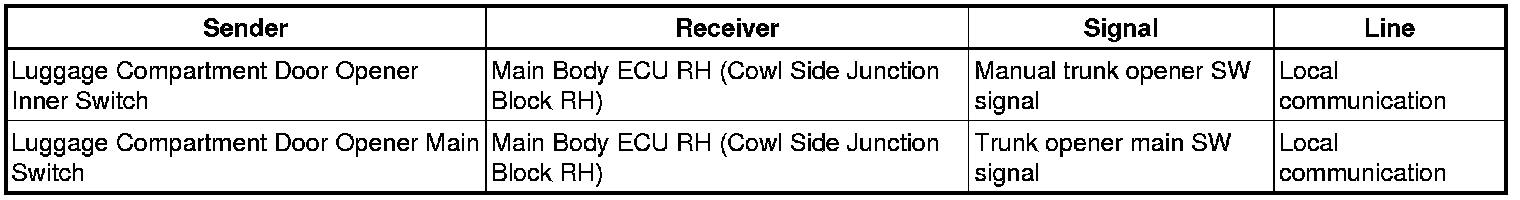

Communication Table
