Installation

AUDIO / VIDEO: FRONT DOOR SPEAKER: INSTALLATION

1. INSTALL FRONT NO. 3 SPEAKER ASSEMBLY

(a) Install the front No. 3 speaker assembly with the 3 screws.

2. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY

(a) Install the front No. 2 speaker assembly to the cover.

(b) Engage the 4 claws and install the cover.

(d) Engage the 2 clamps.

(e) Connect the connector.

3. INSTALL FRONT NO. 1 SPEAKER ASSEMBLY

(a) Install the front No. 1 speaker assembly with the 3 bolts.

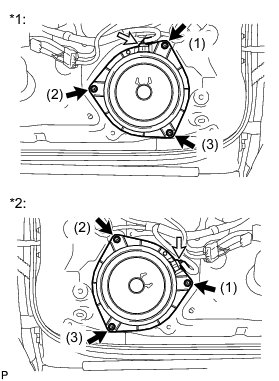

Text in Illustration

HINT
Install the bolts in the order shown in the illustration.

(b) Connect the connector.

4. INSTALL FRONT DOOR INNER GLASS WEATHERSTRIP Reassembly

5. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY Reassembly

6. INSTALL COURTESY LIGHT ASSEMBLY Installation

7. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL Reassembly

8. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH Reassembly

9. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG Reassembly
