Audio and Visual System (w/o Navigation System without Multi-display)

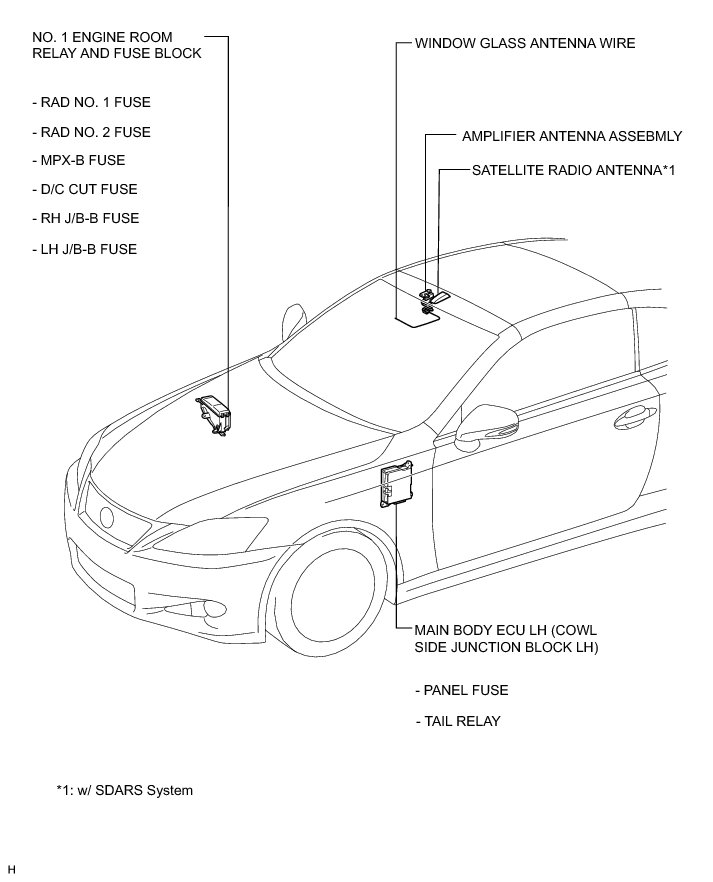

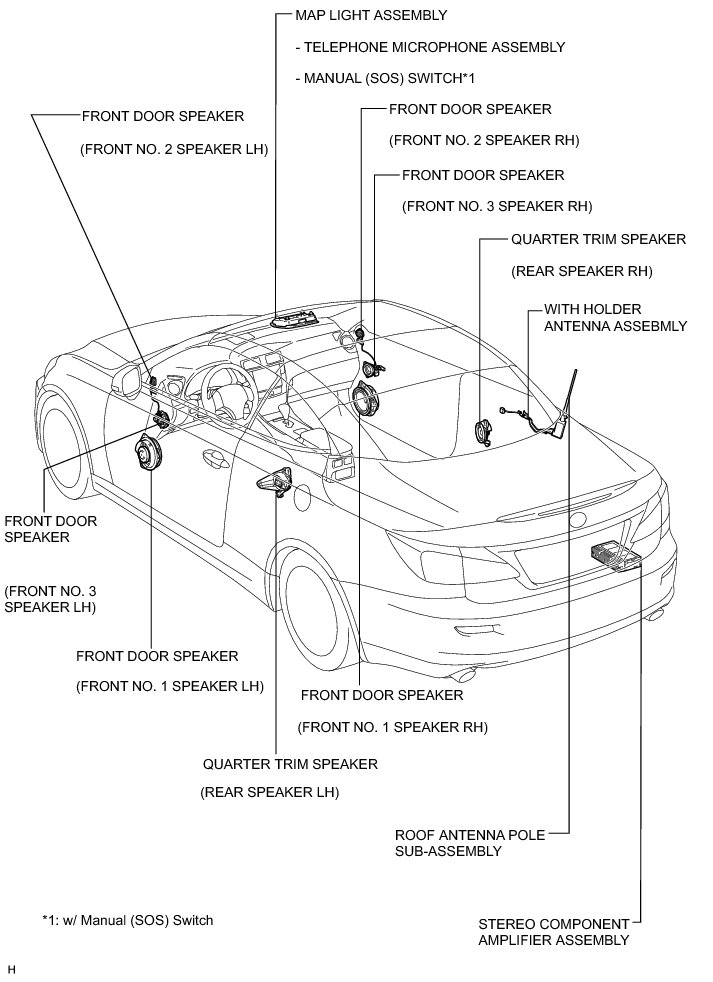

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM (w/o Navigation System without Multi-display): PARTS LOCATION
