Emergency Contact Button: Testing and Inspection

METER / GAUGE / DISPLAY: SATELLITE SWITCH: INSPECTION

1. INSPECT SATELLITE SWITCH SET

(a) Disconnect the J16 connector.

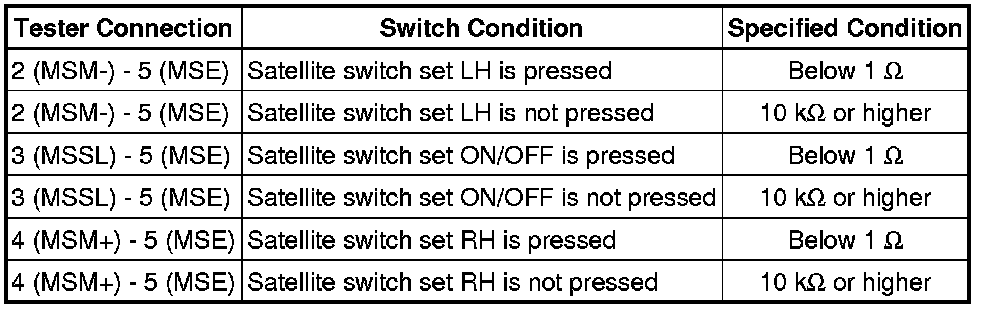

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





HINT
If the value is not as specified, replace the satellite switch Removal.
