ECU Power Source Circuit

THEFT DETERRENT / KEYLESS ENTRY: THEFT DETERRENT SYSTEM: ECU Power Source Circuit
- ECU Power Source Circuit

DESCRIPTION

This circuit provides power for main body ECU RH (cowl side junction block RH) operation.

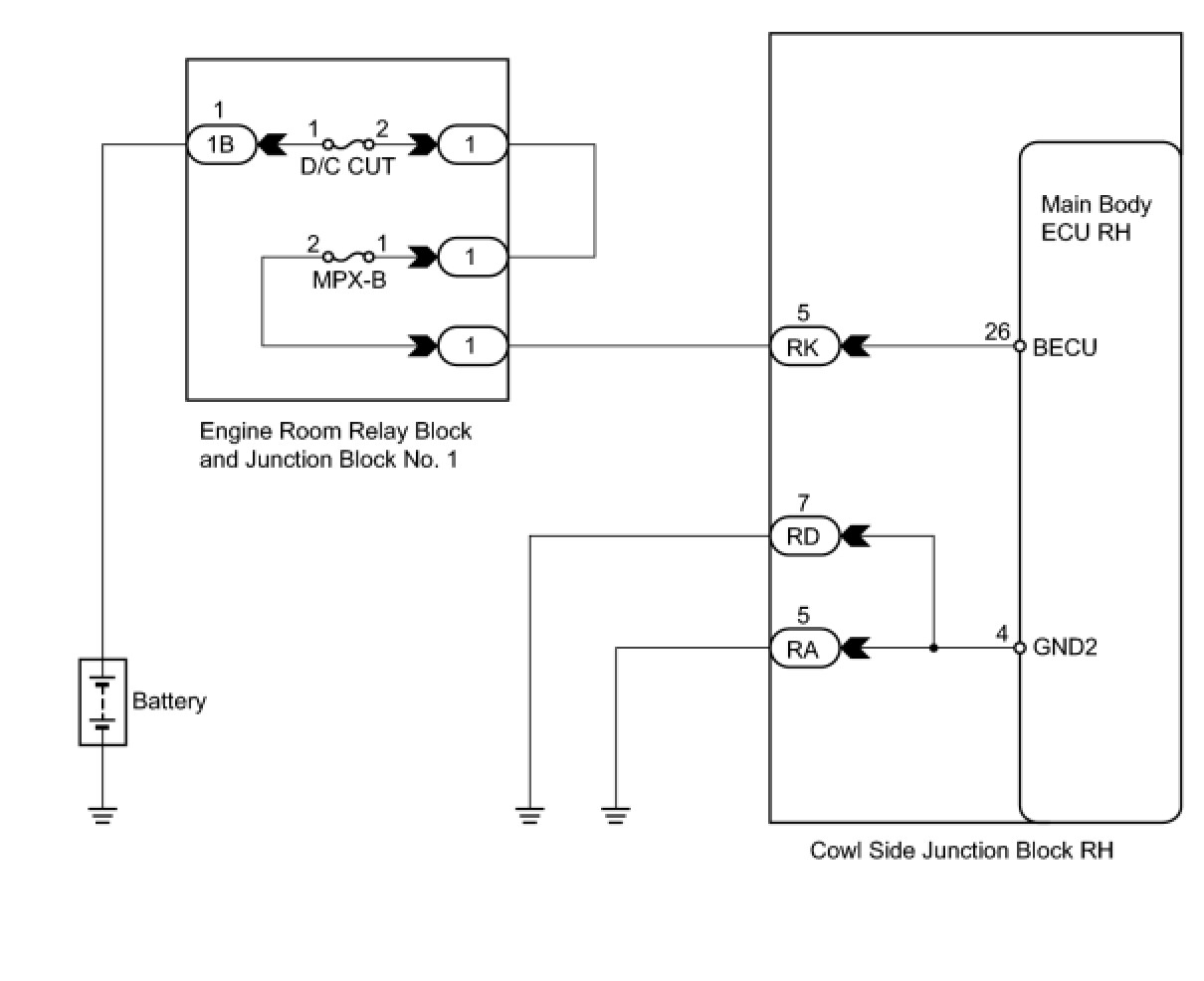

WIRING DIAGRAM





INSPECTION PROCEDURE

HINT
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. CHECK COWL SIDE JUNCTION BLOCK RH (POWER SOURCE)

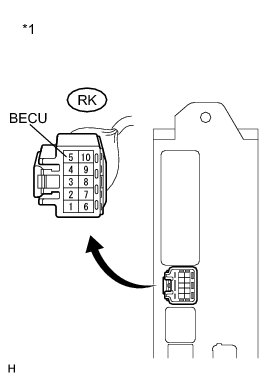

(a) Disconnect the RK cowl side junction block RH connector.





(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (COWL SIDE JUNCTION BLOCK RH - BODY GROUND)

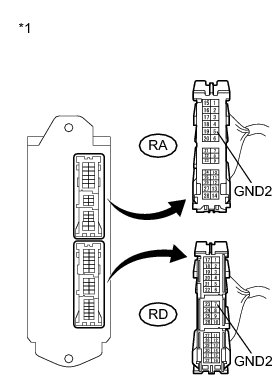

(a) Disconnect the RA and RD cowl side junction block RH connectors.

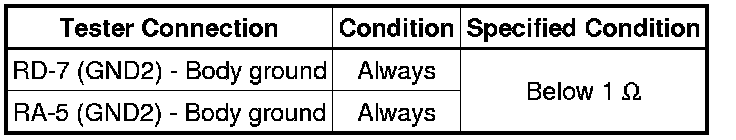

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Theft Deterrent System
