WIPER AND WASHER: FRONT WIPER RUBBER: INSTALLATION

1. INSTALL WIPER RUBBER

(a) Install the wiper rubber to the 2 wiper rubber backing plates.





NOTICE:
* Align the protrusion on the wiper rubber and the concaved portion of the backing plate.
* Align the curved lines of the backing plate and the glass.

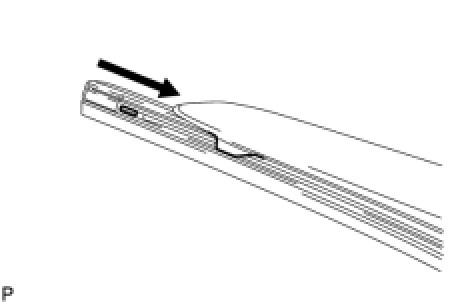

(b) Install the wiper rubber to the front wiper blade LH with the top of the rubber (curved end) facing the axis of the wiper arm.





NOTICE:
Push the wiper rubber into the wiper blade strongly to engage them securely.

2. INSTALL FRONT WIPER BLADE

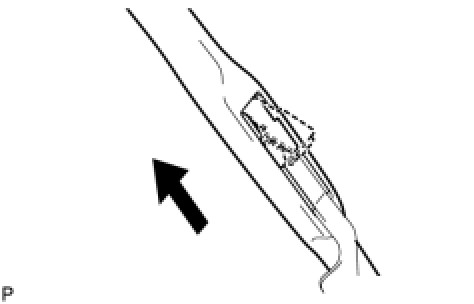

(a) Install the front wiper blade as shown in the illustration.





(b) Install the holder of the front wiper blade.
