Windshield Washer Spray Nozzle: Testing and Inspection

WIPER AND WASHER: WASHER NOZZLE: ON-VEHICLE INSPECTION

1. INSPECT WASHER NOZZLE (for TMC Made)

(a) With the engine running, check the position that the washer fluid hits the windshield.

Standard:

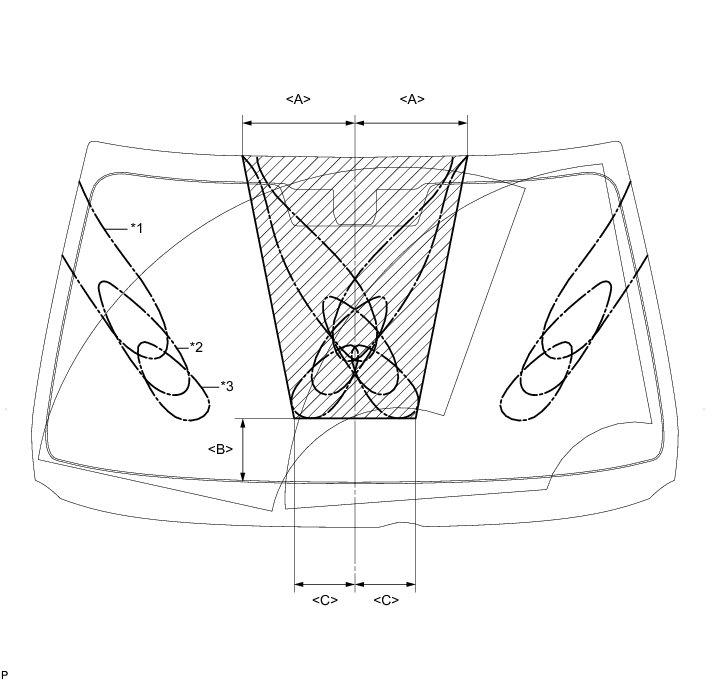

Washer fluid hits the windshield in the areas shown in the illustration.

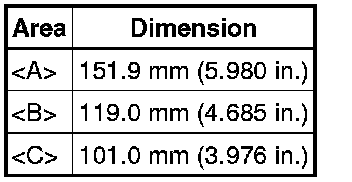

Standard Clearance





Text in Illustration





HINT
If the result is not as specified, replace the malfunctioning washer nozzle.

2. INSPECT WASHER NOZZLE (except TMC Made)

(a) With the engine running, check the position that the washer fluid hits the windshield.

Standard:

Washer fluid hits the windshield in the areas shown in the illustration.

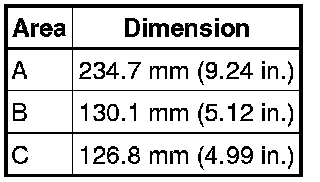

Standard Clearance





Text in Illustration





HINT
If the result is not as specified, replace the malfunctioning washer nozzle.
