Installation

WIPER AND WASHER: HEADLIGHT CLEANER ACTUATOR: INSTALLATION

1. INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY

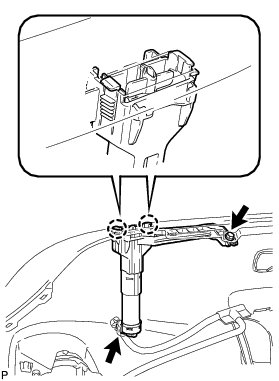

(a) Engage the 2 claws.





(b) Install the headlight washer actuator sub-assembly with the bolt.

(c) Connect the headlight washer hose.

HINT
Use the same procedures for the RH side and the LH side.

2. INSTALL HEADLIGHT CLEANER WASHER NOZZLE

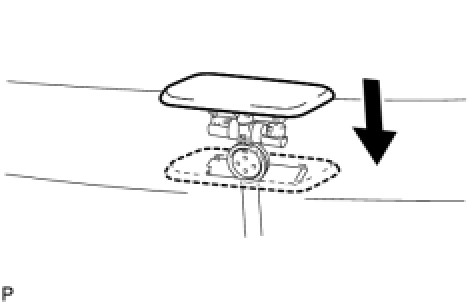

(a) Install the headlight cleaner washer nozzle.





HINT
Use the same procedures for the RH side and the LH side.

3. INSTALL FRONT BUMPER ASSEMBLY Installation

4. INSTALL RADIATOR GRILLE PROTECTOR Installation

5. INSTALL COOL AIR INTAKE DUCT SEAL Installation

6. VEHICLE PREPARATION FOR FOG LIGHT AIM Adjustments

7. PREPARATION FOR FOG LIGHT AIMING Adjustments

8. FOG LIGHT AIMING INSPECTION Adjustments

9. FOG LIGHT AIMING ADJUSTMENT Adjustments
