Key-Off Operation Function Operates Even If Operating Conditions Are Not Satisfied

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM: Key-off Operation Function Operates even if Operating Conditions are not Satisfied
- Key-off Operation Function Operates even if Operating Conditions are not Satisfied

DESCRIPTION

* When the front doors are closed, each power window regulator motor assembly can control its power window operation for approximately 45 seconds after the engine switch is turned from on (IG) to off by receiving operation permission signals from the main body ECU RH (cowl side junction block RH).

* However, when approximately 45 seconds have elapsed, or the driver side door or front passenger side door is opened within approximately 45 seconds of the engine switch being turned off, the power window regulator motor assembly disables manual operation.

* During an auto operation, when 45 seconds have passed and key-off operation is prohibited, the window operation will not stop until the auto operation is completed.

INSPECTION PROCEDURE

NOTICE:
The power window control system uses a multiplex communication system (BEAN). Inspect the communication function by following How to Proceed with Troubleshooting How To Proceed With Troubleshooting. Troubleshoot the power window control system after confirming that the communication system is functioning properly.

PROCEDURE

1. CHECK OPERATION FUNCTION AFTER ENGINE SWITCH IS TURNED OFF

(a) Check the power window operation function after the engine switch is turned off.

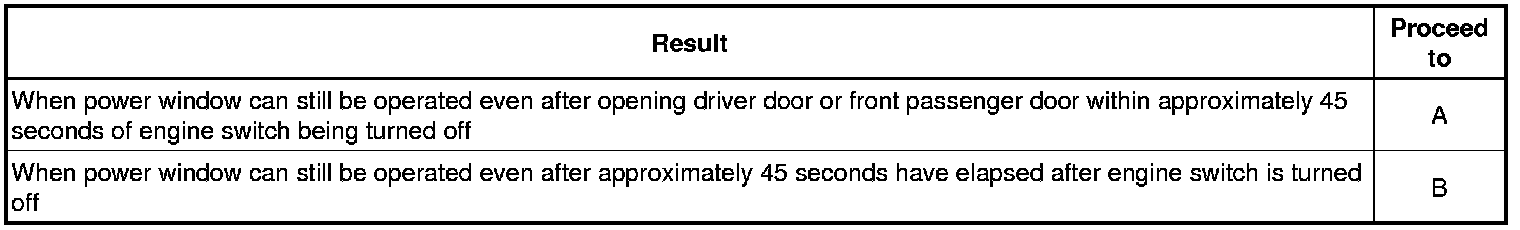

Result:





B -- REPLACE MAIN BODY ECU RH (COWL SIDE JUNCTION BLOCK RH)
A -- Continue to next step.

2. READ VALUE USING TECHSTREAM (Main Body)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / Main Body / Data List.

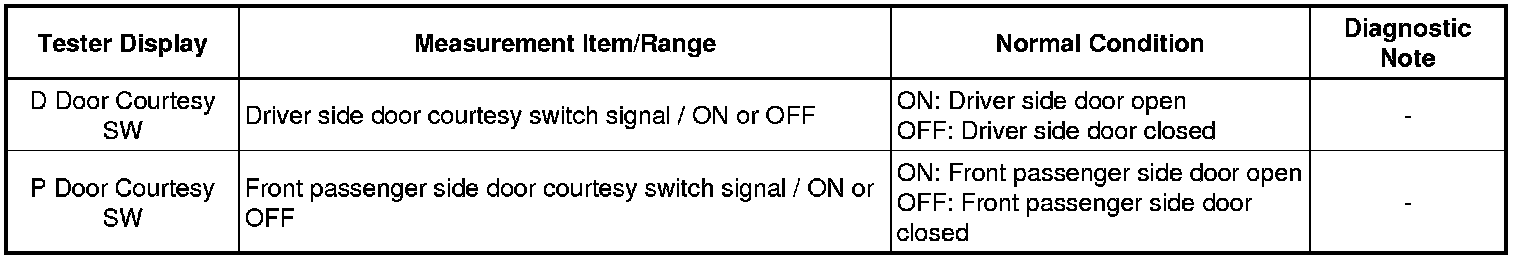

(e) Read the Data List according to the display on the Techstream.

Main Body (Main Body ECU RH (Cowl Side Junction Block RH))





OK:

On the Techstream screen, ON or OFF is displayed accordingly.

NG -- GO TO LIGHTING SYSTEM (Proceed to Door Courtesy Light Switch Circuit) Door Courtesy Switch Circuit

OK -- REPLACE MAIN BODY ECU RH (COWL SIDE JUNCTION BLOCK RH)
