Front Passenger Side Power Window Auto Up / Down Function Does Not Operate With Front Passenger Side Power Window Switch

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM: Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window Switch
- Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window Switch

DESCRIPTION

If the manual up/down function can be performed but the auto up/down function cannot, the fail-safe mode may be functioning.

If the power window initialization Initialization has not been performed, the auto up/down function will not operate.

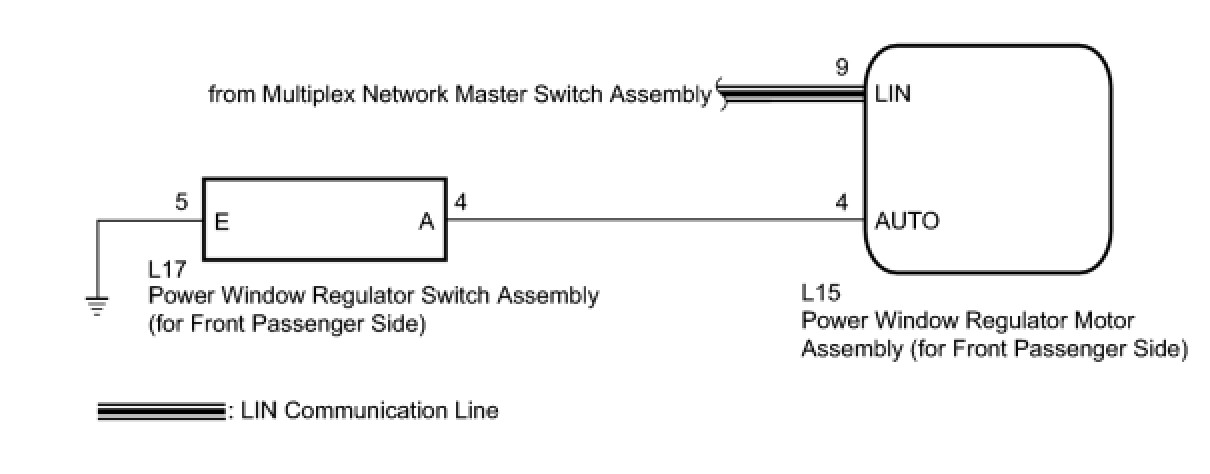

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
* When the power window regulator motor assembly (for front passenger side) is reinstalled or replaced, the power window control system must be initialized.
* After a door glass or a door glass run has been replaced, the jam protection function may operate unexpectedly when the auto up function is used. In such cases, the auto up function can be reinitialized by repeating the following operations at least 5 times:
(1) Close the power window by fully pulling up the power window regulator switch assembly (for front passenger side) and holding it at the auto up position.
(2) Open the power window by fully pushing down the power window regulator switch assembly (for front passenger side).
* When the ECU determines that the power window regulator motor assembly (for front passenger side) has a malfunction, DTC B2311 is set.

PROCEDURE

1. CHECK DTC OUTPUT

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(b) Recheck for DTCs.

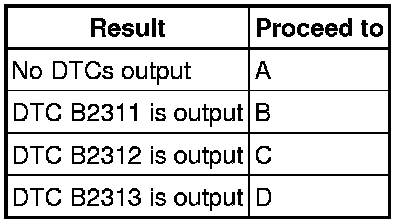

Result:





B -- GO TO DTC (B2311) B2311

C -- GO TO DTC (B2312) B2312

D -- GO TO DTC (B2313) B2313
A -- Continue to next step.

2. READ VALUE USING TECHSTREAM (P-Door Motor)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / P-Door Motor / Data List.

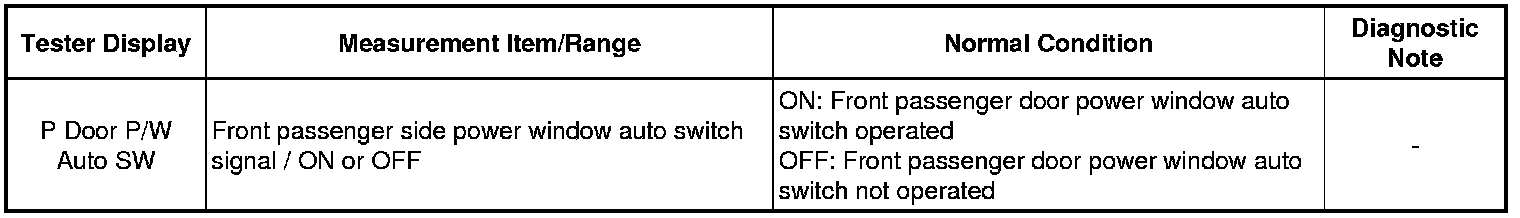

(e) Read the Data List according to the display on the Techstream.

P-Door Motor (Power Window Regulator Motor Assembly (for Front Passenger Side))





OK:

On the Techstream screen, ON or OFF is displayed accordingly.

NG -- CHECK HARNESS AND CONNECTOR (POWER WINDOW SWITCH - REGULATOR MOTOR)

OK -- REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front Passenger Side) Removal

3. CHECK HARNESS AND CONNECTOR (POWER WINDOW SWITCH - REGULATOR MOTOR)

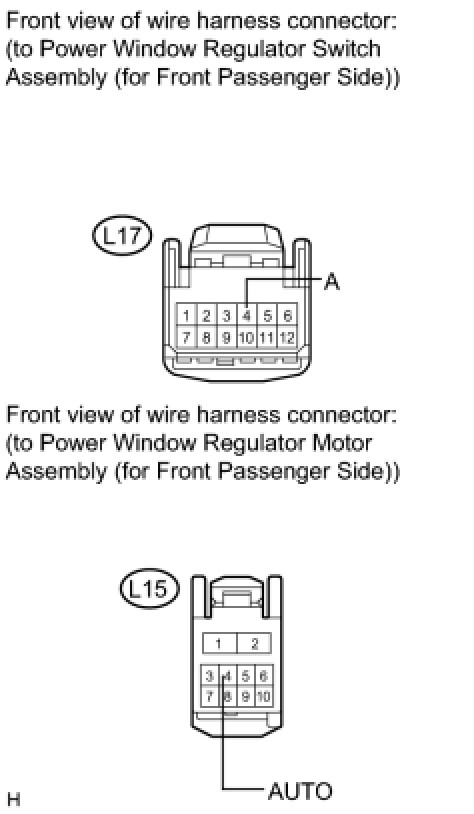

(a) Disconnect the power window regulator switch assembly (for front passenger side) connector.

(b) Disconnect the power window regulator motor assembly (for front passenger side) connector.

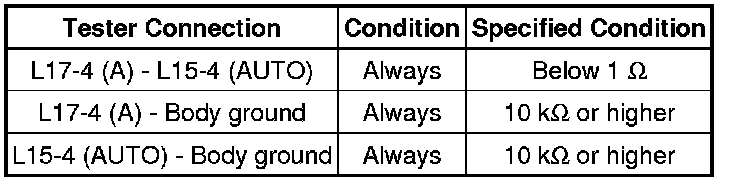

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

4. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Front Passenger Side)

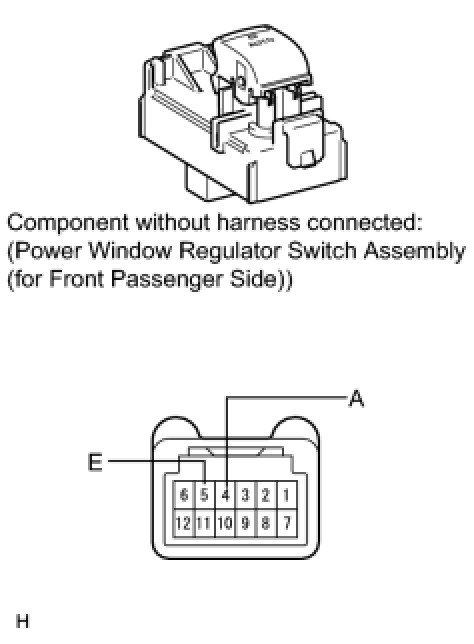

(a) Remove the power window regulator switch assembly (for front passenger side) Removal.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Front Passenger Side) Removal

OK -- REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front Passenger Side) Removal
