Installation

UF1AE TRANSFER: TRANSFER VALVE BODY ASSEMBLY: INSTALLATION

1. INSTALL TRANSFER CONTROL SOLENOID Reassembly

2. INSTALL TRANSFER VALVE BODY ASSEMBLY

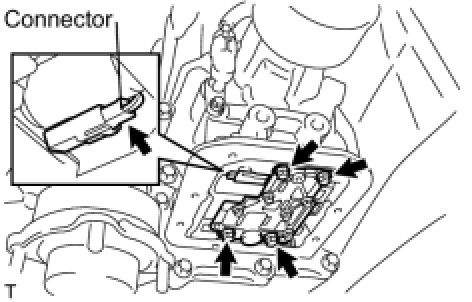

(a) Connect the transfer wire connector to the transfer control solenoid.





(b) Install the transfer upper valve body with the 4 bolts.

Torque : 9.8 Nm (100 kgf-cm, 87 in-lbf)

3. INSTALL TRANSFER OIL PAN Installation

4. INSTALL TRANSFER DYNAMIC DAMPER Installation

5. INSTALL ENGINE REAR MOUNTING MEMBER Installation

6. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR (for 4GR-FSE) Installation

7. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR (for 2GR-FSE) Installation

8. INSTALL FRONT EXHAUST PIPE ASSEMBLY (for 4GR-FSE) Installation

9. INSTALL FRONT EXHAUST PIPE ASSEMBLY (for 2GR-FSE) Installation

10. INSTALL HEATED OXYGEN SENSOR (for 4GR-FSE) Installation

11. INSTALL HEATED OXYGEN SENSOR (for 2GR-FSE) Installation

12. INSTALL FRONT CENTER FLOOR BRACE (for 4GR-FSE) Installation

13. INSTALL FRONT CENTER FLOOR BRACE (for 2GR-FSE) Installation

14. INSTALL REAR NO. 1 FLOOR PANEL BRACE (for 4GR-FSE) Installation

15. INSTALL REAR NO. 1 FLOOR PANEL BRACE (for 2GR-FSE) Installation

16. ADD AUTOMATIC TRANSMISSION FLUID Installation

17. CHECK FOR EXHAUST GAS LEAKS
