Replacement

UF1AE TRANSFER: TRANSFER CASE REAR OIL SEAL: REPLACEMENT

1. DRAIN AUTOMATIC TRANSMISSION FLUID Removal

2. REMOVE REAR NO. 1 FLOOR PANEL BRACE (for 4GR-FSE) Removal

3. REMOVE REAR NO. 1 FLOOR PANEL BRACE (for 2GR-FSE) Removal

4. REMOVE FRONT CENTER FLOOR BRACE (for 4GR-FSE) Removal

5. REMOVE FRONT CENTER FLOOR BRACE (for 2GR-FSE) Removal

6. REMOVE HEATED OXYGEN SENSOR (for 4GR-FSE) Removal

7. REMOVE HEATED OXYGEN SENSOR (for 2GR-FSE) Removal

8. REMOVE FRONT EXHAUST PIPE ASSEMBLY (for 4GR-FSE) Removal

9. REMOVE FRONT EXHAUST PIPE ASSEMBLY (for 2GR-FSE) Removal

10. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR (for 4GR-FSE) Removal

11. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR (for 2GR-FSE) Removal

12. REMOVE OUTSIDE AIR GUIDE PLATE RH (for 4GR-FSE) Removal

13. REMOVE OUTSIDE AIR GUIDE PLATE RH (for 2GR-FSE) Removal

14. REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY (for 4GR-FSE) Removal

15. REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY (for 2GR-FSE) Removal

16. REMOVE TRANSFER CASE REAR OIL SEAL

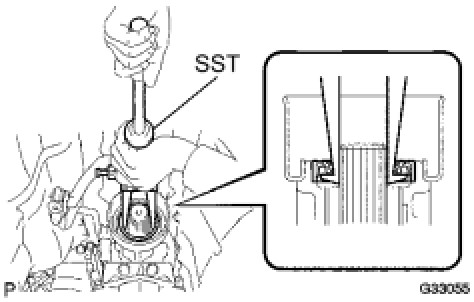

(a) Using SST, remove the oil seal.





SST : 09308-00010

17. INSTALL TRANSFER CASE REAR OIL SEAL

(a) Using SST and a hammer, install a new oil seal.





SST : 09325-40010

Oil seal installation depth:

2.3 to 2.7 mm (0.091 to 0.106 in.)

(b) Apply MP grease to the oil seal lip.

18. INSTALL PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY (for 4GR-FSE) Installation

19. INSTALL PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY (for 2GR-FSE) Installation

20. INSPECT AND ADJUST BOTH NO. 2 AND NO. 3 JOINT ANGLES (for 4GR-FSE) Installation

21. INSPECT AND ADJUST BOTH NO. 2 AND NO. 3 JOINT ANGLES (for 2GR-FSE) Installation

22. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR (for 4GR-FSE) Installation

23. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR (for 2GR-FSE) Installation

24. INSTALL OUTSIDE AIR GUIDE PLATE RH (for 4GR-FSE) Installation

25. INSTALL OUTSIDE AIR GUIDE PLATE RH (for 2GR-FSE) Installation

26. INSTALL FRONT EXHAUST PIPE ASSEMBLY (for 4GR-FSE) Installation

27. INSTALL FRONT EXHAUST PIPE ASSEMBLY (for 2GR-FSE) Installation

28. INSTALL HEATED OXYGEN SENSOR (for 4GR-FSE) Installation

29. INSTALL HEATED OXYGEN SENSOR (for 2GR-FSE) Installation

30. INSTALL FRONT CENTER FLOOR BRACE (for 4GR-FSE) Installation

31. INSTALL FRONT CENTER FLOOR BRACE (for 2GR-FSE) Installation

32. INSTALL REAR NO. 1 FLOOR PANEL BRACE (for 4GR-FSE) Installation

33. INSTALL REAR NO. 1 FLOOR PANEL BRACE (for 2GR-FSE) Installation

34. ADD AUTOMATIC TRANSMISSION FLUID Installation

35. CHECK FOR EXHAUST GAS LEAKS
