Lexus
>>
2012
>>
IS 250 AWD V6-2.5L (4GR-FSE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Transfer Case
>>
Description and Operation
>>
System Diagram
System Diagram

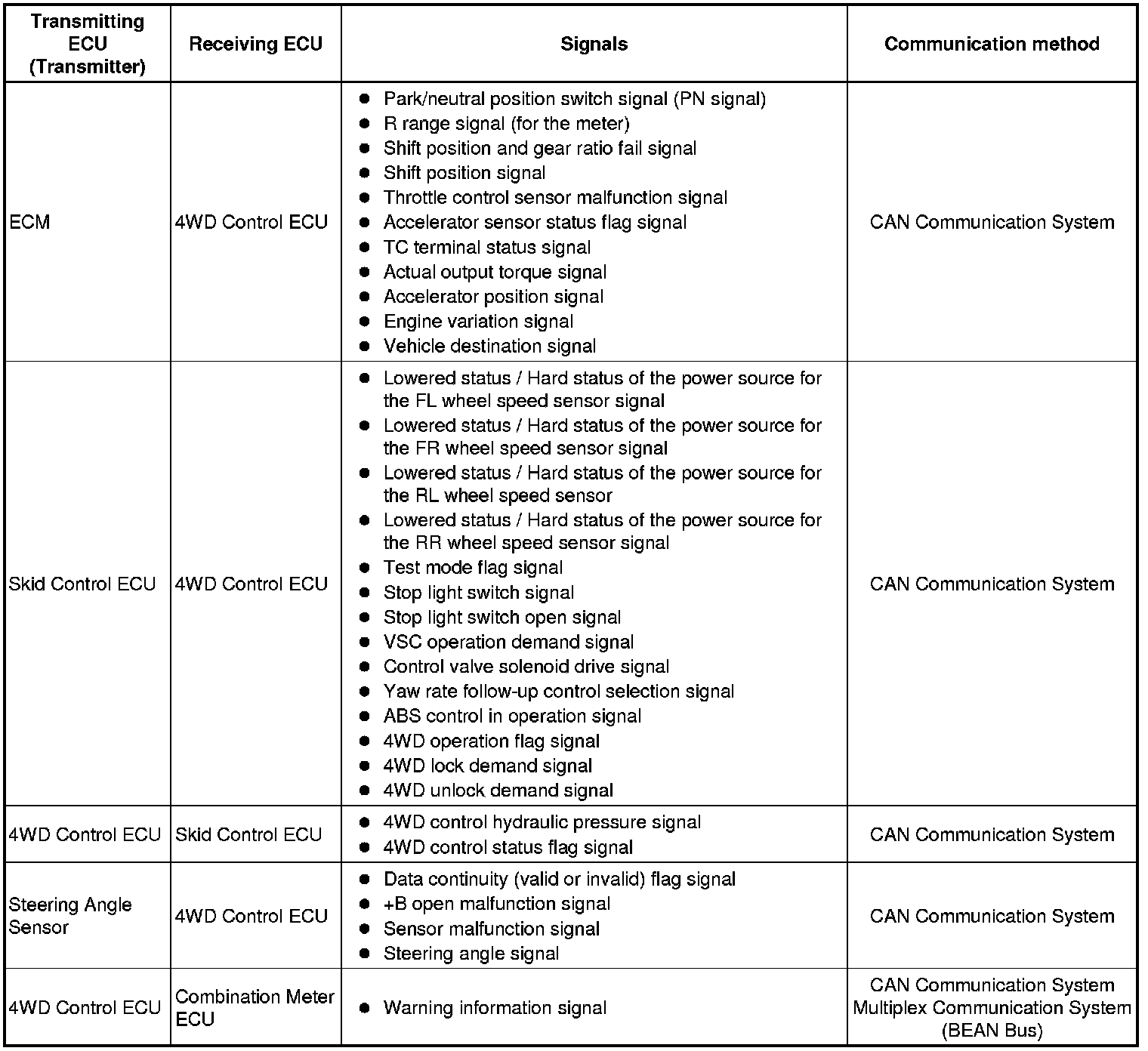

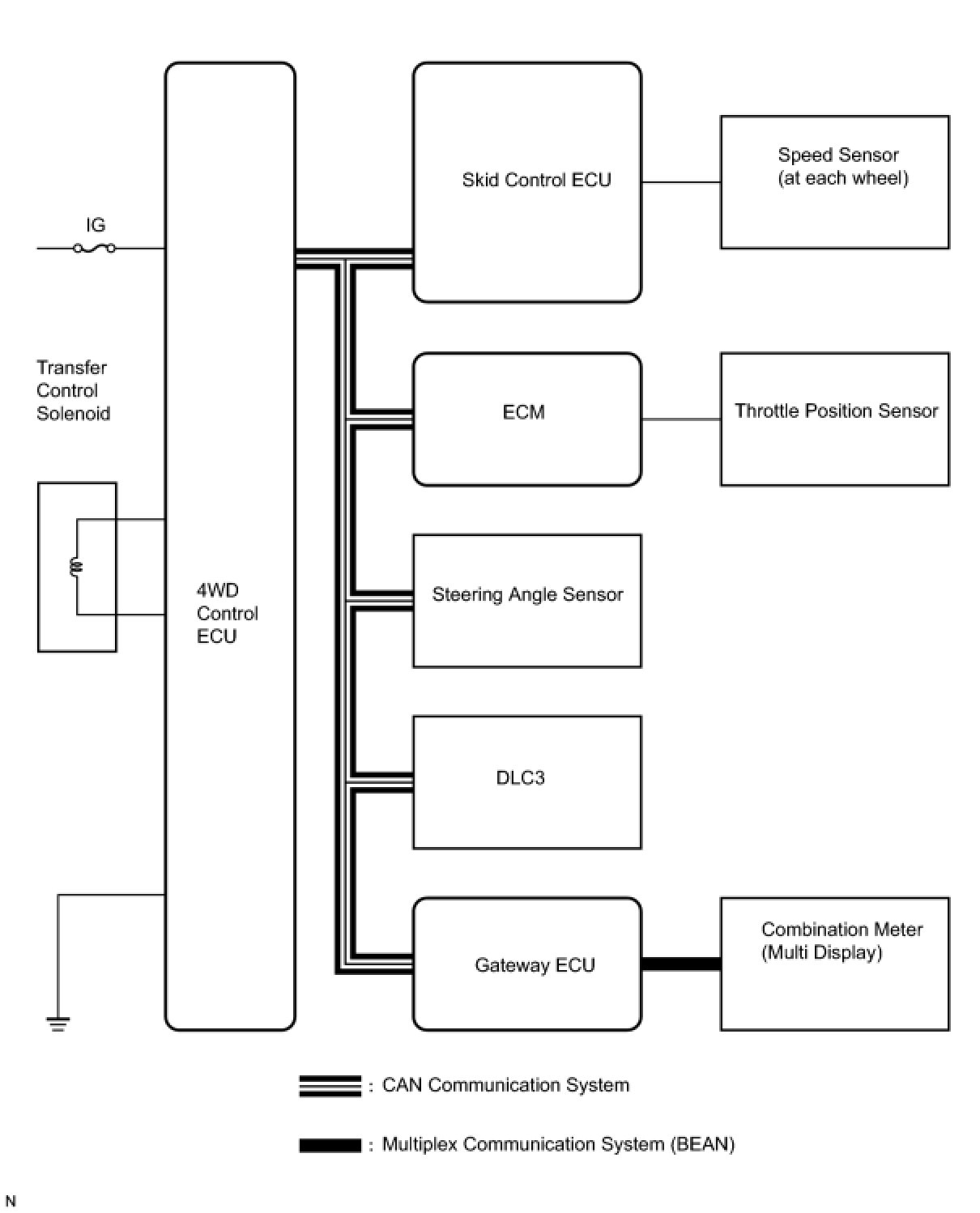

UF1AE TRANSFER: FOUR WHEEL DRIVE CONTROL SYSTEM: SYSTEM DIAGRAM
