Symptom Related Diagnostic Procedures

PROPELLER SHAFT: PROPELLER SHAFT SYSTEM: PROBLEM SYMPTOMS TABLE

HINT
Use the table below to help determine the cause of problem symptoms. If multiple suspected areas are listed, the potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.

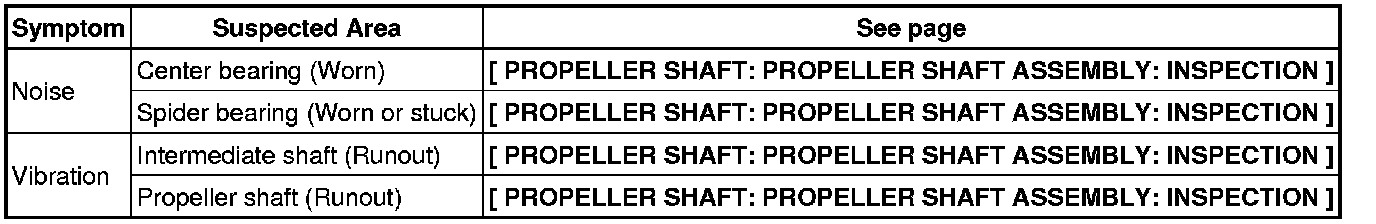

Front Propeller Shaft Assembly (for 4WD)

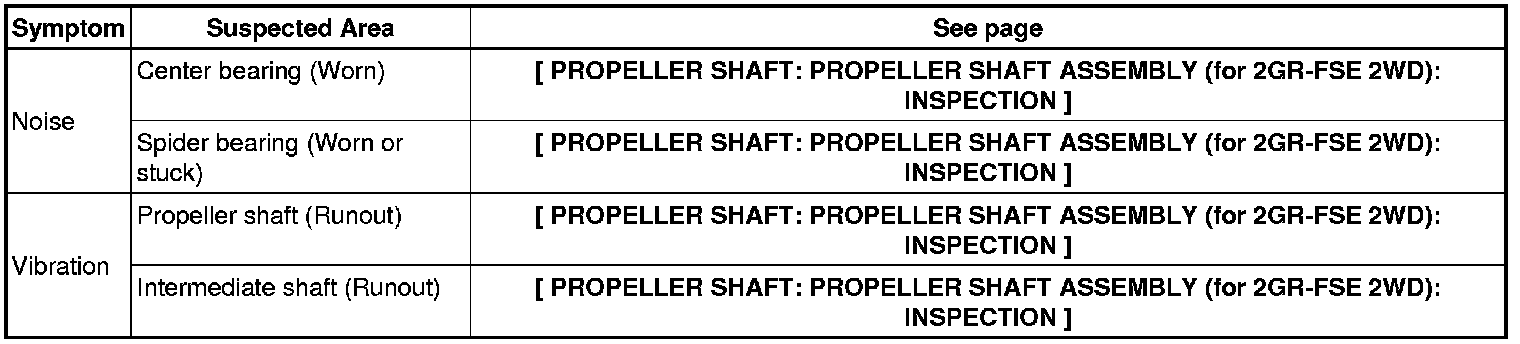

Propeller Shaft Assembly (for 2GR-FSE 2WD)

Propeller Shaft Assembly (for 2GR-FSE 4WD)

Propeller Shaft Assembly (for 4GR-FSE)
