Disassembly

PROPELLER SHAFT: PROPELLER SHAFT ASSEMBLY (for 2GR-FSE 4WD): DISASSEMBLY

1. REMOVE PROPELLER SHAFT ASSEMBLY

(a) Put matchmarks on both flanges.





Text in Illustration





(b) Remove the 4 nuts, 4 bolts, 4 washers and propeller shaft assembly.





2. REMOVE NO. 1 CENTER SUPPORT BEARING ASSEMBLY

(a) Hold the intermediate shaft assembly in a vise between aluminium plates.

NOTICE:
Do not overtighten the vise.

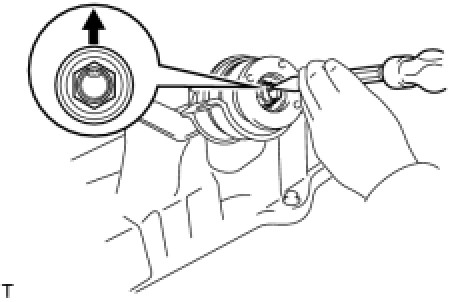

(b) Using a chisel and a hammer, release the staked part of the nut.





NOTICE:
Release the staked part of the nut completely, otherwise the threads of the intermediate shaft assembly may be damaged.

(c) Using SST to hold the universal joint flange, remove the nut and intermediate shaft washer.





Text in Illustration





SST : 09330-00021

(d) Put matchmarks on the intermediate shaft assembly and universal joint flange.





Text in Illustration

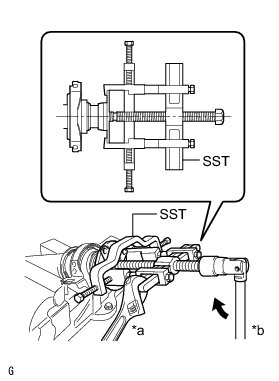

(e) Using SST, remove the universal joint flange from the intermediate shaft assembly.





Text in Illustration





SST : 09950-40011

09951-04020

09952-04010

09953-04030

09954-04010

09955-04031

09958-04011

NOTICE:
Apply grease to the threads and tip of the SST center bolt before use.

(f) Remove the No. 1 center support bearing assembly and 2 center support bearing washers from the intermediate shaft assembly.
