Reassembly

PROPELLER SHAFT: PROPELLER SHAFT ASSEMBLY (for 2GR-FSE 2WD): REASSEMBLY

1. INSTALL NO. 1 CENTER SUPPORT BEARING ASSEMBLY

NOTICE:
Be careful not to grip the propeller shaft tube too tightly in a vise as this may cause deformation.

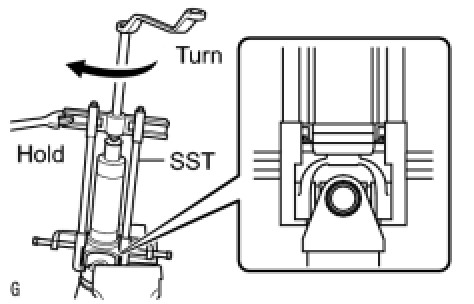

(a) Using SST, install a new No. 1 dust deflector.





SST : 09506-35010

SST : 09316-60011

09316-00011

SST : 09950-40011

09951-04020

09952-04010

09953-04030

09955-04021

09958-04011

NOTICE:
Be careful not to damage the dust deflector.

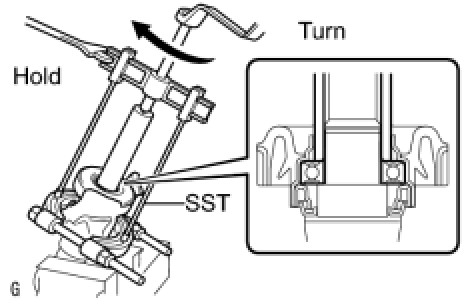

(b) Using SST, install the No. 1 center support bearing assembly.





SST : 09950-40011

09951-04020

09953-04030

SST : 09330-50010

SST : 09950-00020

SST : 09950-50013

09952-05010

NOTICE:
Be sure to install the bearing in the correct direction.

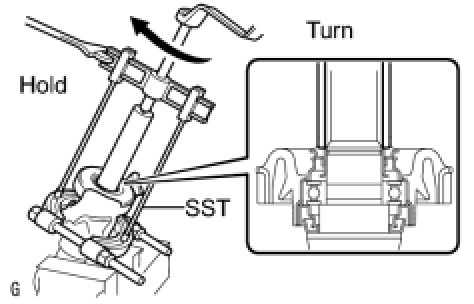

(c) Using SST, insert a new No. 2 dust deflector until it almost touches the rubber of the No. 1 center support bearing assembly.





SST : 09950-40011

09951-04020

09953-04030

SST : 09330-50010

SST : 09950-00020

SST : 09950-50013

09952-05010

NOTICE:
Be careful not to damage the No. 2 dust deflector.

(d) Using a snap ring expander, install a new snap ring.





2. INSTALL PROPELLER INTERMEDIATE SHAFT

(a) Install the dust boot.





NOTICE:
Assemble the propeller intermediate shaft assembly after wrapping vinyl tape around the spline so that it will not damage the boot.

(b) Apply grease to the spline.

Grease:

Molybdenum disulphide lithium base NLGI No. 2

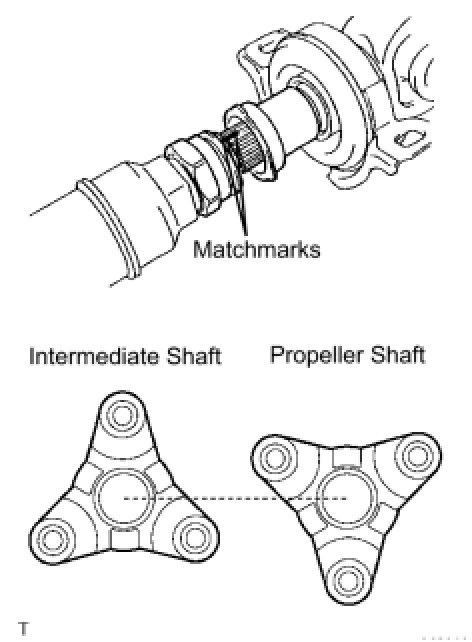

(c) Align the matchmarks and assemble the intermediate shaft and propeller shaft.

(d) Cover the adjusting nut with the dust boot.





NOTICE:
The directions of the intermediate shaft companion flange and the propeller shaft companion flange should differ by 180°.

(e) Temporarily tighten the adjusting nut by hand.
