Front Drive Shaft Assembly

DRIVE SHAFT: FRONT DRIVE SHAFT ASSEMBLY: INSPECTION

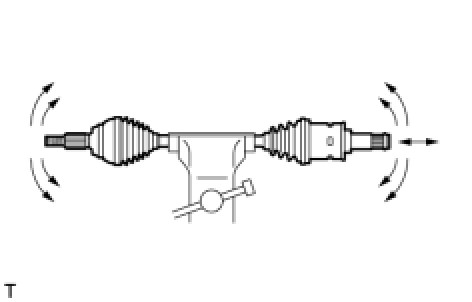

1. INSPECT FRONT DRIVE SHAFT ASSEMBLY

(a) Check that there is no excessive play in the outboard joint.





(b) Check that the inboard joint slides smoothly in the thrust direction.

(c) Check that there is no excessive play in the radial directions of the inboard joint.

(d) Check the boot for damage.
