Removal

DIFFERENTIAL: DIFFERENTIAL MOUNT CUSHION: REMOVAL

1. REMOVE REAR DIFFERENTIAL CARRIER ASSEMBLY

2GR-FSE: Removal

4GR-FSE: Removal

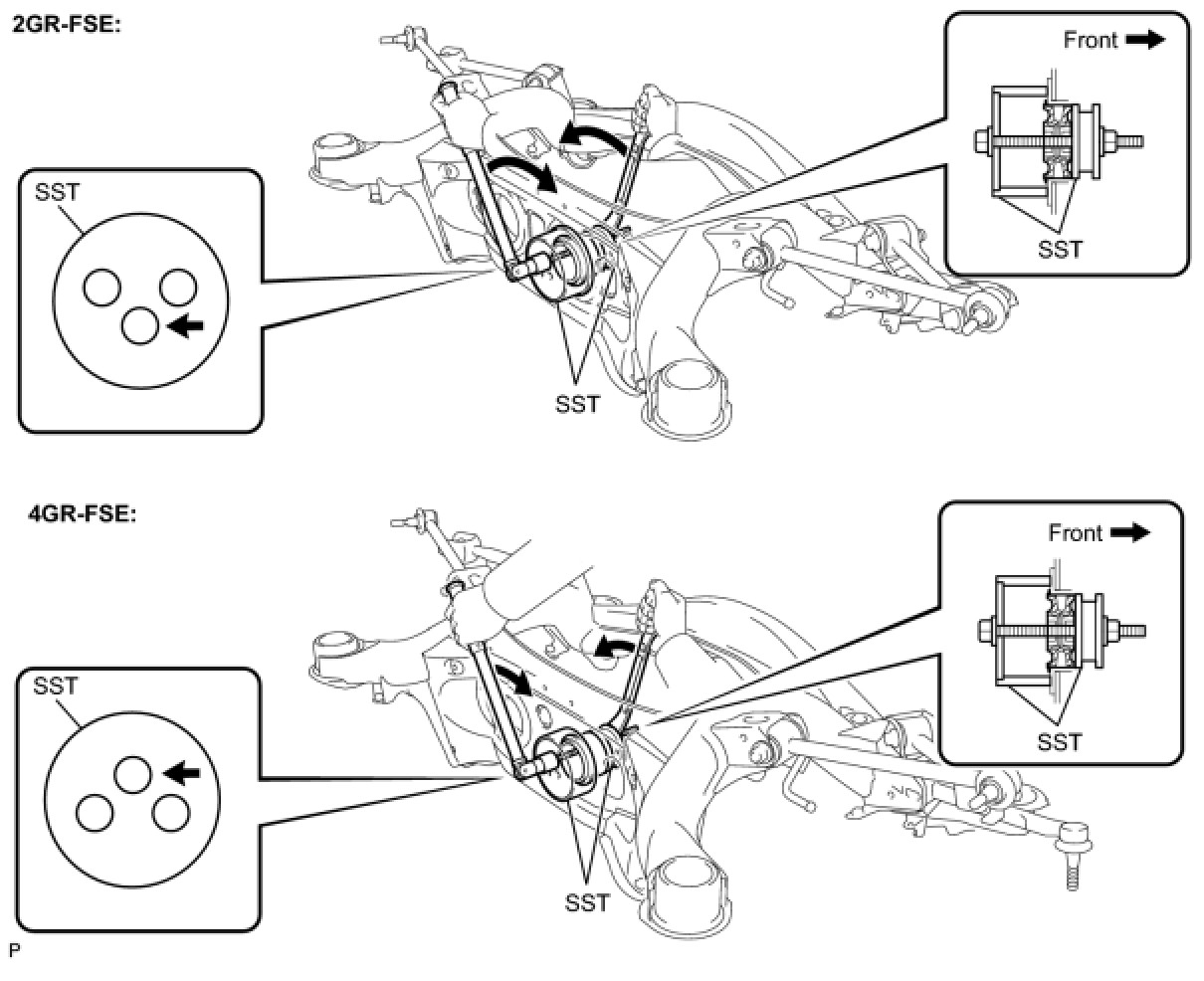

2. REMOVE NO. 1 REAR DIFFERENTIAL MOUNT CUSHION

(a) Using SST, remove the No. 1 rear differential mount cushion.





SST : 09570-24011

SST : 09316-12010

NOTICE:
* Do not bring the SST into contact with the subframe.
* Do not slant the bolts of SST.
* Set the SST in the correct direction.
* Screw the 2 bolts of SST equally into the 2 holes of the rear differential mount.

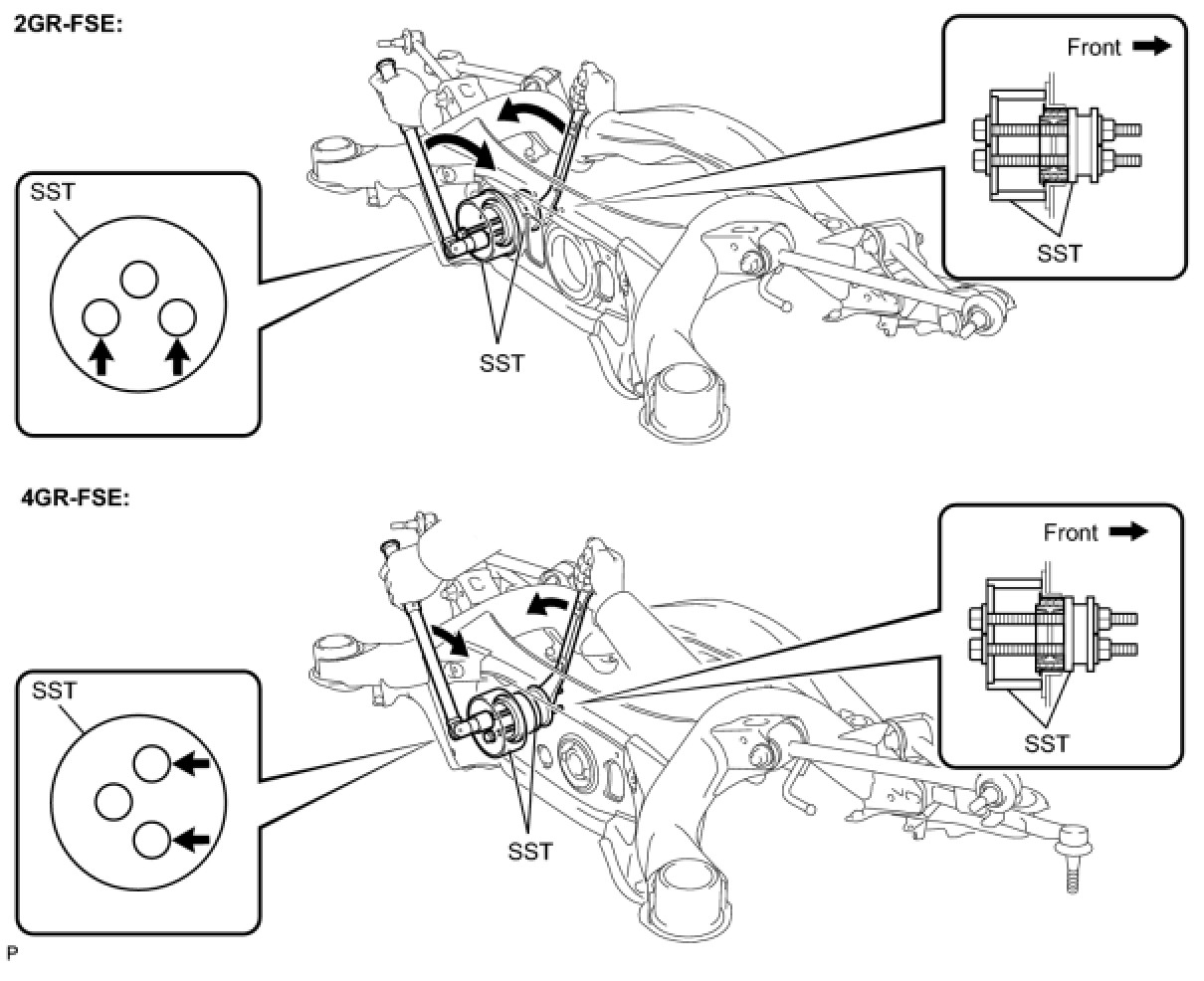

3. REMOVE NO. 2 REAR DIFFERENTIAL MOUNT CUSHION

(a) Using SST, remove the No. 2 rear differential mount cushion.





SST : 09570-24011

SST : 09316-12010

NOTICE:
* Do not bring SST into contact with the subframe.
* Do not slant the bolt of SST.
* Set the SST in the correct direction.
