Installation

DIFFERENTIAL: DIFFERENTIAL MOUNT CUSHION: INSTALLATION

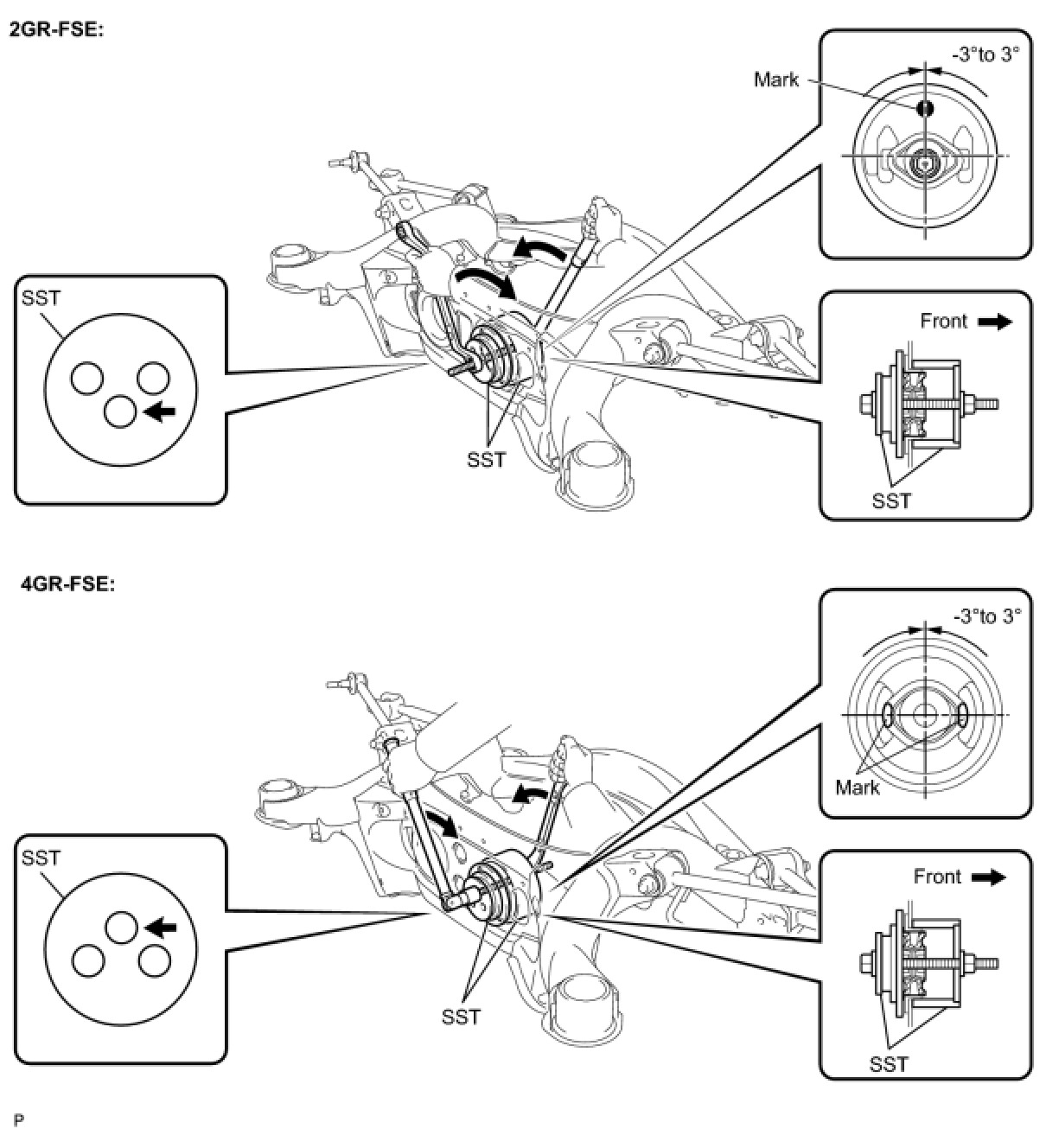

1. INSTALL NO. 1 REAR DIFFERENTIAL MOUNT CUSHION

(a) Using SST, install a new No. 1 rear differential mount cushion.





SST : 09570-24011

SST : 09316-12010

NOTICE:
* Temporarily install the mount cushion to the member in order to prevent it from tilting and install the SST.
* Be sure to use the correct combination of SST.
* Make sure that the SST contacts the entire circumference of the mount cushion.

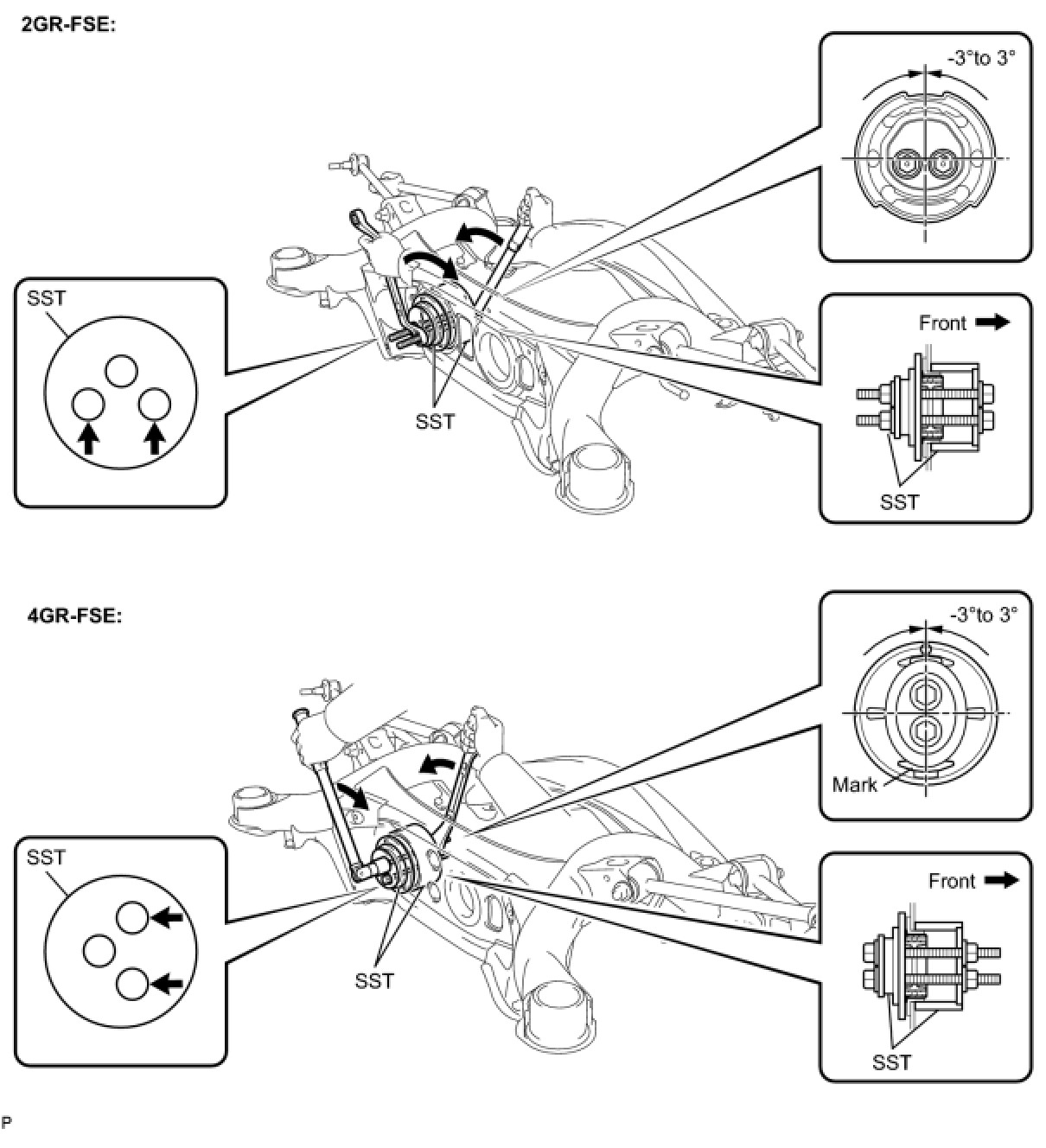

2. INSTALL NO. 2 REAR DIFFERENTIAL MOUNT CUSHION

(a) Using SST, install a new No. 2 rear differential mount cushion.





SST : 09570-24011

SST : 09316-12010

NOTICE:
* Temporarily install the mount cushion to the member in order to prevent it from tilting and install the SST.
* Be sure to use the correct combination of SST.
* Make sure that the SST contacts the entire circumference of the mount cushion.

3. INSTALL REAR DIFFERENTIAL CARRIER ASSEMBLY

2GR-FSE: Installation

4GR-FSE: Installation
