Installation

DIFFERENTIAL: FRONT DIFFERENTIAL CARRIER ASSEMBLY (for 4WD): INSTALLATION

1. INSTALL FRONT DIFFERENTIAL CARRIER ASSEMBLY

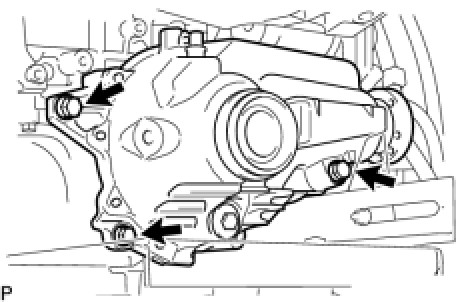

(a) Support the differential carrier assembly with a jack. Temporarily install the differential carrier assembly to the engine assembly with the 3 bolts.





(b) Fully tighten the 3 bolts to install the differential carrier assembly.

Torque : 87 Nm (890 kgf-cm, 64 ft-lbf)

2. INSTALL ENGINE ASSEMBLY

for 2GR-FSE: Installation

for 4GR-FSE: Installation
