Installation

DIFFERENTIAL: DIFFERENTIAL CARRIER ASSEMBLY (for 4GR-FSE): INSTALLATION

1. INSTALL REAR DIFFERENTIAL CARRIER ASSEMBLY

(a) Support the differential carrier rear assembly with a jack.

NOTICE:
Do not drop the differential carrier.

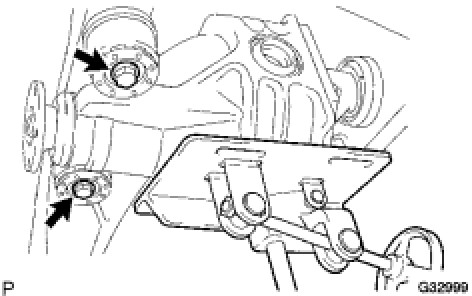

(b) Using a hexagon wrench (12 mm), temporarily install the differential carrier to the suspension member with 3 new bolts.

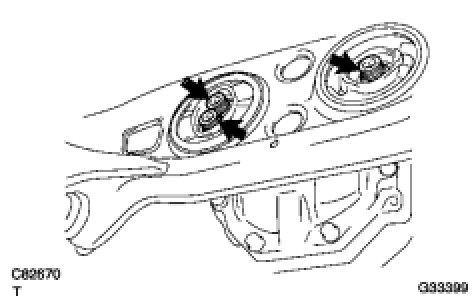

(c) Install the 2 rear upper differential mount stoppers, 2 rear lower differential mount stoppers. Temporarily install the differential carrier rear to the suspension member with 2 new bolts.





(d) Using a hexagon wrench (12 mm) and torque wrench, tighten the 3 bolts to the specified torque.





Torque : 103 Nm (1050 kgf-cm, 76 ft-lbf)

(e) Using a torque wrench, tighten the 2 bolts to the specified torque.





Torque : 95 Nm (970 kgf-cm, 70 ft-lbf)

NOTICE:
Do not tilt the inner sleeve or distort the rubber parts when fully tightening the differential mount stopper.

2. INSTALL REAR STABILIZER BAR

Installation

3. INSTALL REAR DRIVE SHAFT ASSEMBLY LH

Installation

4. INSTALL REAR DRIVE SHAFT ASSEMBLY RH

HINT
Installation procedure of the RH side is the same as that of the LH side.

5. INSTALL PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY

Installation

6. INSTALL REAR WHEEL

Torque : 103 Nm (1050 kgf-cm, 76 ft-lbf)

7. INSTALL TAIL EXHAUST PIPE ASSEMBLY

Installation

8. ADD DIFFERENTIAL OIL Adjustments

9. INSPECT DIFFERENTIAL OIL Adjustments

10. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

Rear Wheel Alignment

11. CHECK FOR EXHAUST GAS LEAKS

12. CHECK ABS SPEED SENSOR SIGNAL

Test Mode Procedure
