Removal
CLUTCH: CLUTCH PEDAL: REMOVAL
1. PRECAUTION
Service Precautions
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait for 90 seconds after disconnecting the cable to prevent airbag deployment Service Precautions.
3. REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination) Removal
4. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination) Removal
5. REMOVE FRONT DOOR OPENING TRIM COVER LH Removal
6. REMOVE SIDE INSTRUMENT PANEL LH Removal
7. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal
8. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Removal
9. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY Removal
10. DISCONNECT WIRE HARNESS
(a) Disconnect the 3 connectors and clamp.
11. DISCONNECT CLUTCH RESERVOIR TUBE
(a) Disconnect the clutch reservoir tube.
HINT
Use a container to catch the fluid.
12. DISCONNECT CLUTCH LINE
(a) Using SST, disconnect the clutch line from the clutch master cylinder.
SST : 09023-00101
HINT
Use a container to catch the fluid.
13. REMOVE CLUTCH PEDAL SUPPORT SUB-ASSEMBLY
(a) Remove the 2 nuts, bolt and clutch pedal support.
14. REMOVE CLUTCH MASTER CYLINDER PUSH ROD CLEVIS PIN
(a) Remove the clip and pin.
15. REMOVE PEDAL WITH HOOK SPRING
(a) While the clutch pedal is fully depressed, remove the hook spring.
16. REMOVE CLUTCH PEDAL SUB-ASSEMBLY
(a) Remove the pedal shaft, nut, washer, and clutch pedal from the clutch pedal support.

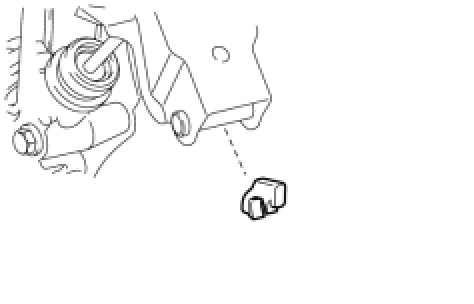

17. REMOVE CLUTCH PEDAL SPRING HOLDER
(a) Remove the clutch pedal spring holder from the clutch pedal support.

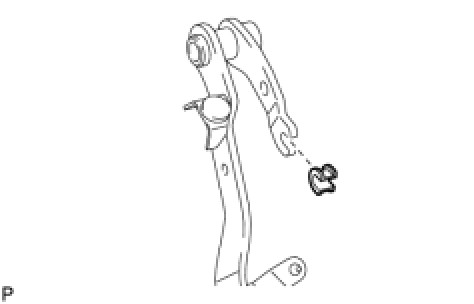

18. REMOVE CLUTCH PEDAL TURNOVER BUSHING
(a) Remove the turnover bushing from the clutch pedal.

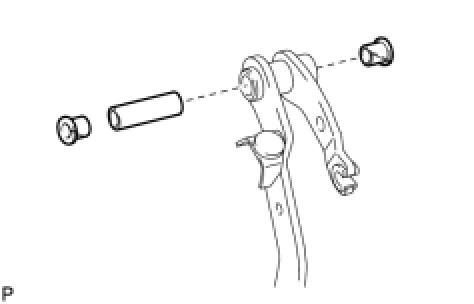

19. REMOVE CLUTCH PEDAL SHAFT COLLAR
(a) Remove the 2 pedal bushings and pedal shaft collar from the clutch pedal.
20. REMOVE CLUTCH PEDAL CUSHION
(a) Remove the 3 clutch pedal cushions.
21. REMOVE CLUTCH PEDAL PAD
(a) Remove the clutch pedal pad from the clutch pedal.
22. REMOVE CLUTCH MASTER CYLINDER PUSH ROD CLEVIS BUSHING
(a) Using a 8 mm hexagon wrench and a hammer, remove the clevis bushing from the clutch pedal.
