Installation

CLUTCH: CLUTCH RELEASE CYLINDER: INSTALLATION

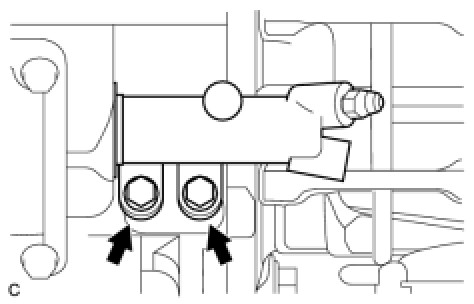

1. TEMPORARILY TIGHTEN CLUTCH RELEASE CYLINDER ASSEMBLY

(a) Temporarily tighten the clutch release cylinder with the 2 bolts.





2. TEMPORARILY TIGHTEN CLUTCH ACCUMULATOR ASSEMBLY

(a) Temporarily tighten the clutch accumulator with the 3 bolts.





3. CONNECT CLUTCH LINE

(a) Using a union nut wrench (10 mm), connect the clutch line.





Torque : 15 Nm (155 kgf-cm, 11 ft-lbf)

CAUTION:
Use the formula to calculate special torque values for situations where the union nut wrench is combined with a torque wrench Service Precautions.

4. FULLY TIGHTEN CLUTCH RELEASE CYLINDER ASSEMBLY

(a) Fully tighten the clutch release cylinder with the 2 bolts.





Torque : 12 Nm (120 kgf-cm, 9 ft-lbf)

5. FULLY TIGHTEN CLUTCH ACCUMULATOR ASSEMBLY

(a) Fully tighten the clutch accumulator with the 3 bolts.





Torque : 12 Nm (120 kgf-cm, 9 ft-lbf)

6. ADD BRAKE FLUID Service and Repair

7. BLEED CLUTCH LINE Procedures

8. INSPECT FLUID LEVEL IN RESERVOIR Procedures

9. INSPECT FOR FLUID LEAK

(a) Check for leaks from the clutch system.
